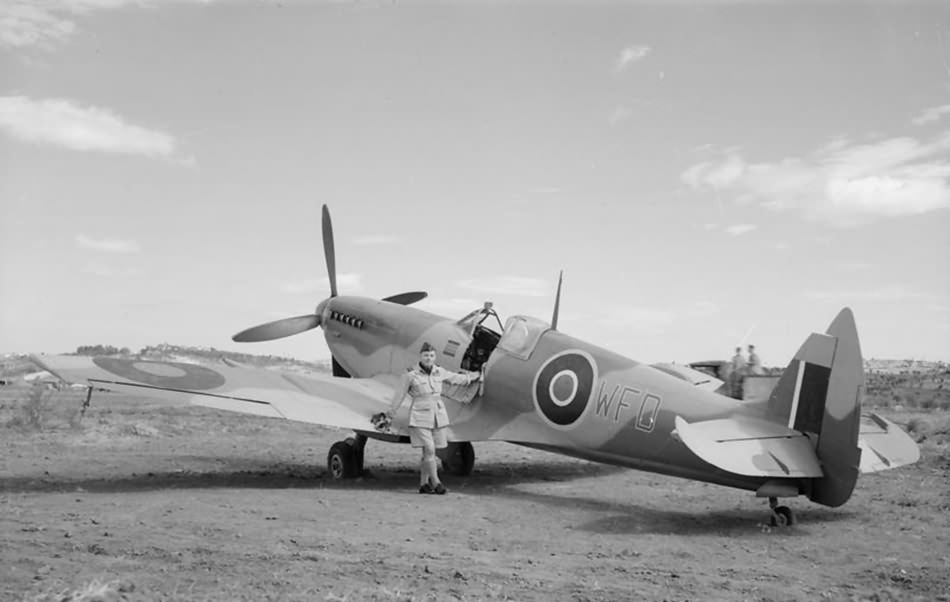

Air Vice Marshal W. F. Dickson and his Spitfire LF Mk VIII JF814, WFD, Italy

Air Vice Marshal W. F. Dickson and his Spitfire LF Mark VIII JF814, WFD, Italy

Air Vice Marshal W. F. Dickson and his Spitfire LF Mark VIII serial JF814, WFD, Italy

The Supermarine Spitfire LF Mk VIII was a low-altitude optimized version of the Mk VIII, designed to excel in combat at lower levels while maintaining much of the performance and versatility of the standard Mk VIII.

Specifications:

  • Designation: LF Mk VIII
  • Type No.: 360
  • Type: Single-seat low-level fighter
  • First Flight: (Similar to Mk VIII, 20th November 1942)

Dimensions:

  • Wingspan: 36 ft 10 in (11.23 m)
  • Length: 31 ft 3½ in (9.54 m)
  • Height: 11 ft 8½ in (3.57 m) [tip of prop, tail up]

Performance:

  • Engine: Two-speed, two-stage, 1,720 hp (1,282 kW) Merlin 66
  • Maximum Speed: 404 mph (650 km/h) at 21,000 ft (6,400 m)
  • Service Ceiling: 41,500 ft (13,410 m)
  • Range: 660 miles (1,062 km)

Armament:

  • Standard Armament:
    • Two 20 mm Hispano cannon (120 rounds per gun)
    • Four 0.303 in (7.7 mm) Browning machine guns (350 rounds per gun)
  • Optional Loadout:
    • Four 20 mm Hispano cannon (120 rounds per gun)
    • Bomb capacity: 1,000 lb (454 kg), with one 500 lb (227 kg) bomb on the centerline and one 250 lb (113 kg) bomb under each wing.

Features:

  • Cockpit: Unpressurized, featuring internal bulletproof glass to protect the pilot.
  • Tailwheel: Retractable for better aerodynamic performance.
  • Propeller: Rotol four-blade, variable-pitch, constant-speed, Type R12/4F5/4 (Jablo or Hydrulignum), 10 ft 9 in (3.28 m) diameter.

Radio Equipment:

  • Communication & Navigation: TR.1143 and A.1271 (for beam approach navigation) with ARI.5000 or ARI.5025 radio equipment.

Production:

  • Total Built: 1,225 units.

Notable Features:

  • Optimized for Low Altitude: The LF Mk VIII was specifically designed for low-altitude operations, where its Merlin 66 engine provided superior power and performance in combat at lower heights compared to other high-altitude variants.
  • Flexible Armament: Similar to the standard Mk VIII, the LF version maintained flexibility in armament configurations, allowing for both anti-aircraft and ground attack roles.
  • Improved Propulsion: The powerful Merlin 66 engine coupled with the Rotol four-blade propeller allowed for increased speed and agility in low-level dogfighting.
  • Extended Range: The LF Mk VIII retained the 660-mile range, making it suitable for extended missions in various theaters, especially for escort and patrol roles.

Published at 950 × 602 px.
Link to full-size photo:
Air Vice Marshal W. F. Dickson and his Spitfire LF Mk VIII JF814, WFD, Italy
