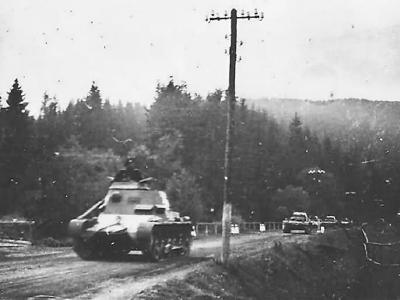

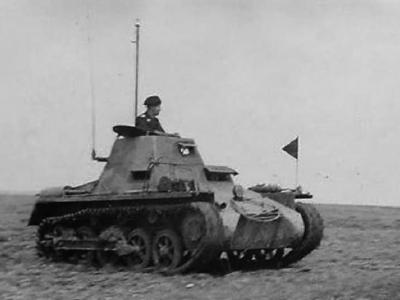

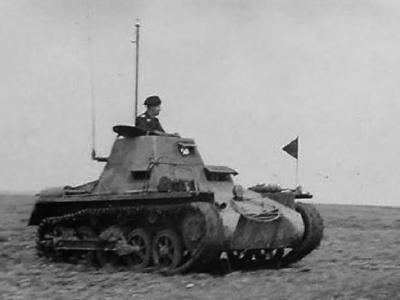

Befehlspanzer I Beskidy Poland 1939

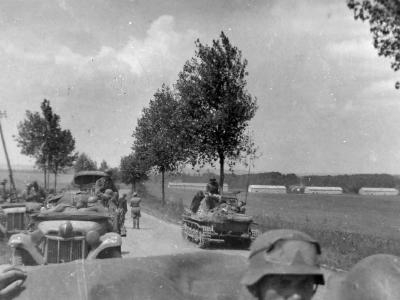

Befehlspanzer I France 1940

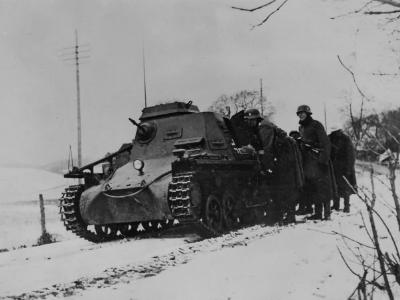

Befehlspanzer I german command tank

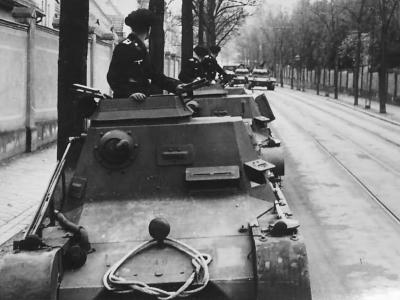

Befehlspanzer I Panzer I SdKfz 265

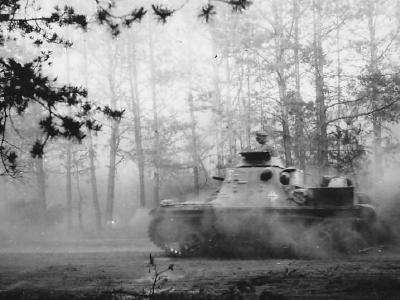

Befehlspanzer I Poland

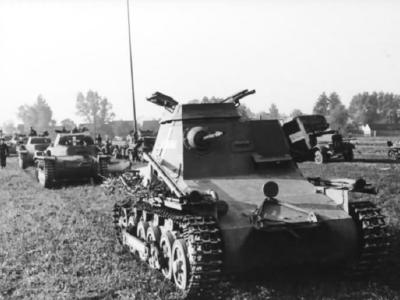

Befehlspanzer I Poland Campaign

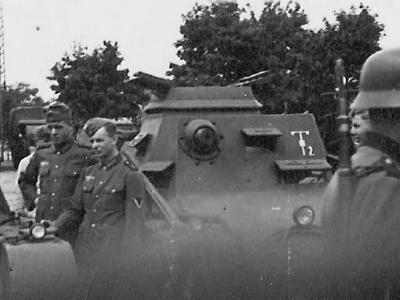

Befehlspanzer I SdKfz 265

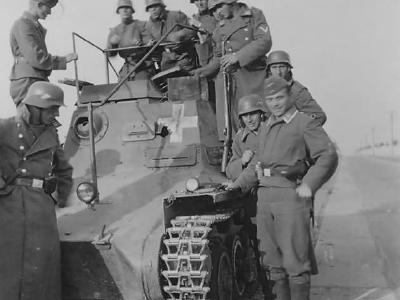

Befehlspanzer I September 1939

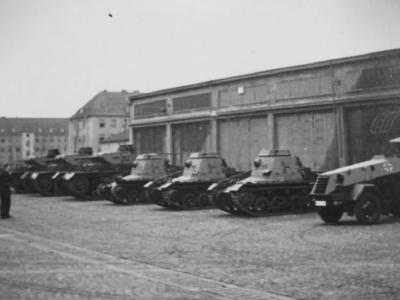

Befehlspanzer I tanks

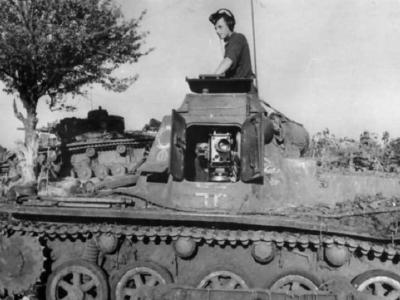

Camera in Panzer I

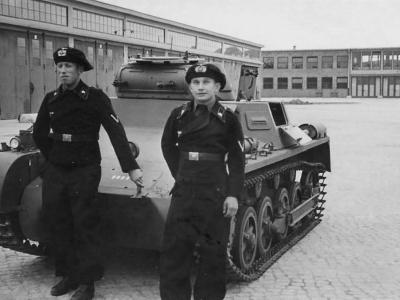

Crew with their Panzer I tank

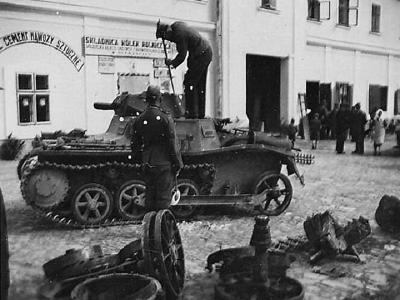

Damaged Panzer I ausf A Poland 1939
Damaged PzKpfw I tank
Destroyed Panzer I Ausf B, Poland 1939

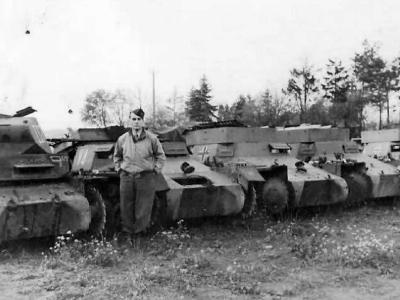

Destroyed Panzer I tanks, 1945

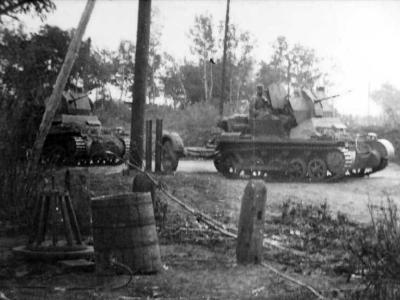

Flakpanzer I 2 cm Flak 38 auf Selbsthahrlafette PzKpfw I Ausf. A of the Flak-Abteilung (mot) 614, Eastern Front

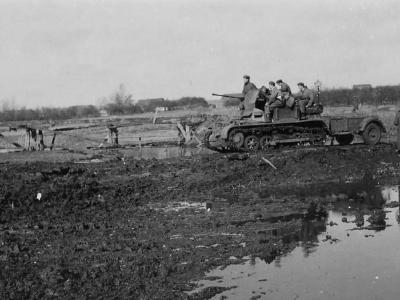

FlakPanzer I 2 cm Flak auf Panzer I Fahrgestell of the Flak-Abteilung (mot) 614, Eastern Front

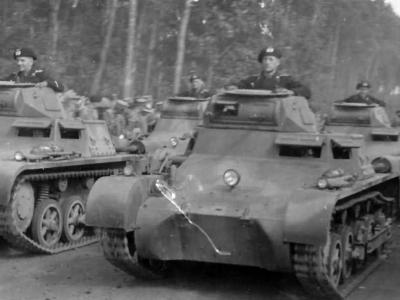

German Panzer I tanks

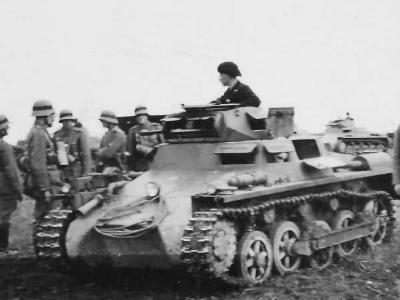

German PzKpfw I Ausf A tank

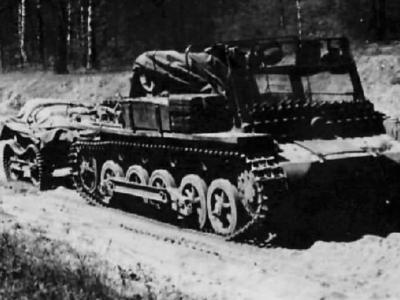

Instandsetzungskraftwagen I

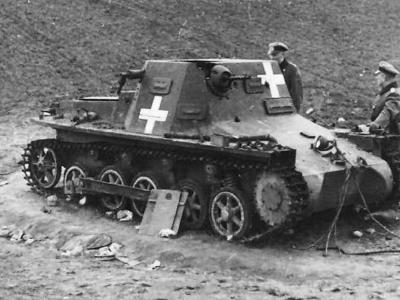

Kleine Panzerbefehlswagen auf Gw I Ausf B Poland 1939

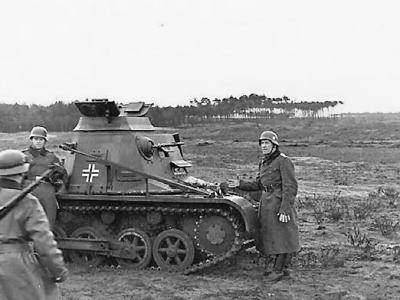

kleine Panzerbefehlswagen I Ausf. B

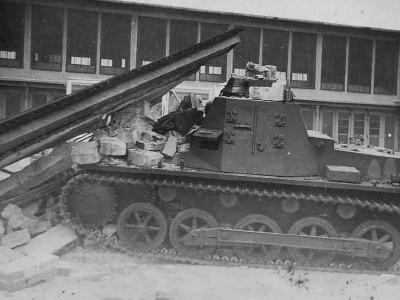

Kleiner Panzerbefehlswagen

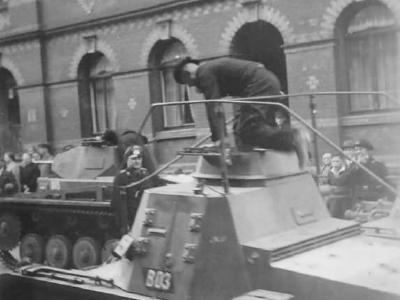

Kleiner Panzerbefehlswagen B03

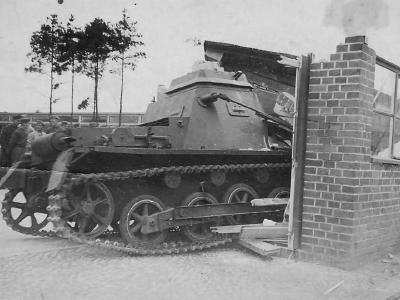

Kleiner Panzerbefehlswagen command tank

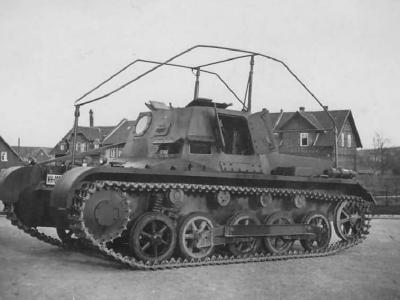

Kleiner Panzerbefehlswagen SdKfz 265 with Rahmenantenne

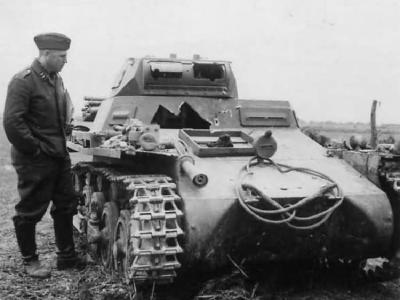

knocked out Panzer I

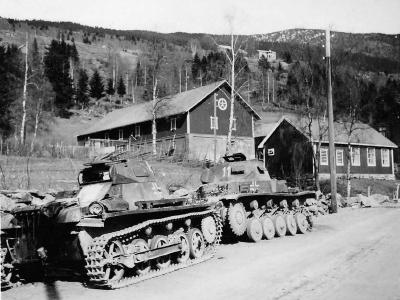

Knocked out Panzer I Ausf A and Panzer II

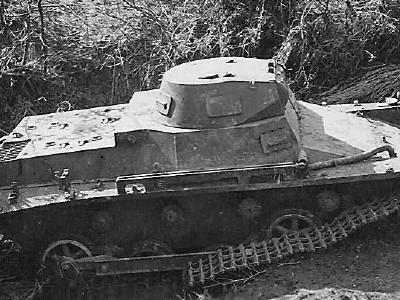

knocked out Panzer I ausf B

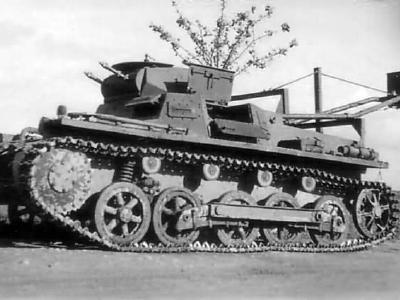

Ladungsleger I auf PzKpfw I Ausf B

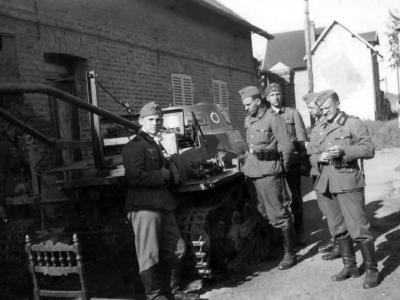

Ladungsleger Panzer I Fahrgestell

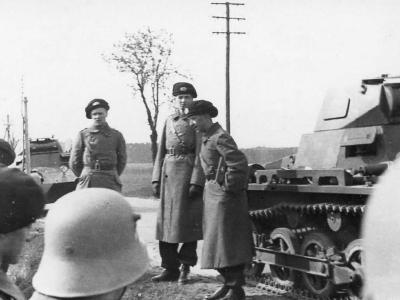

Panzer I and soldiers

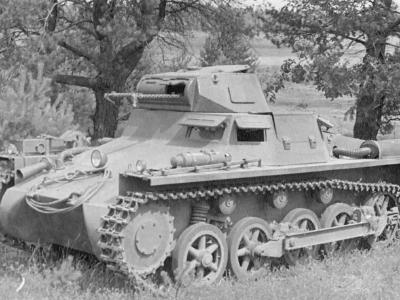

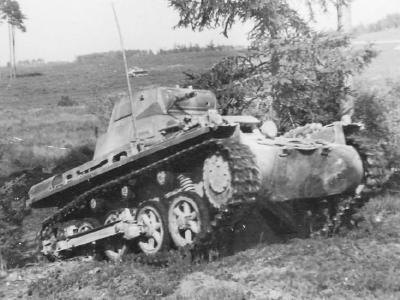

Panzer I Ausf A

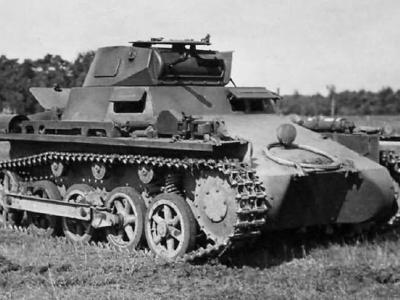

Panzer I ausf A 2

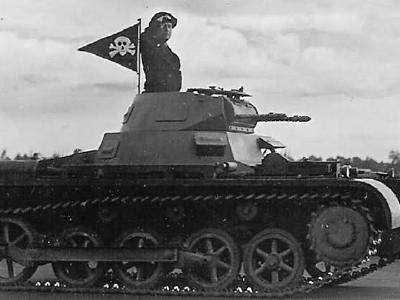

Panzer I Ausf A during parade

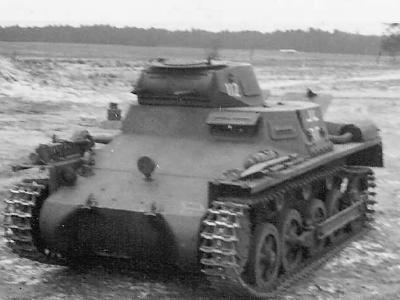

Panzer I Ausf A number 112

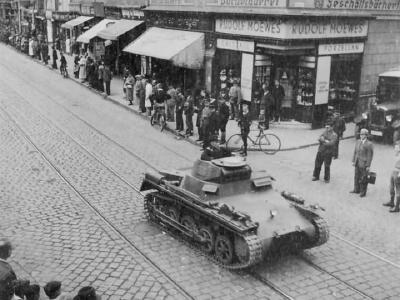

Panzer I ausf A on street

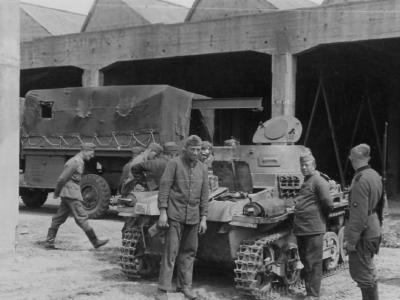

Panzer I ausf A tank maintenance

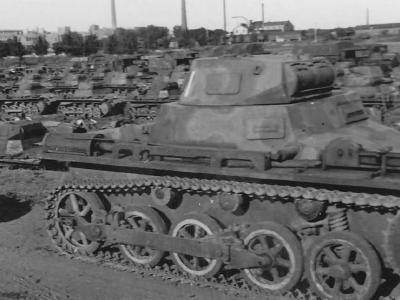

Panzer I ausf A tanks

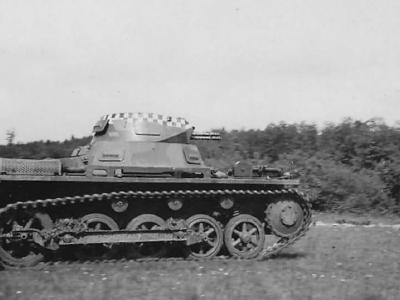

Panzer I Ausf A, Fahrschule variant

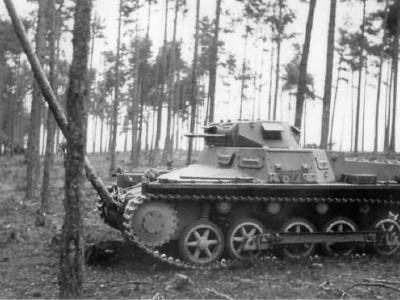

Panzer I Ausf B #622, Poland 1939

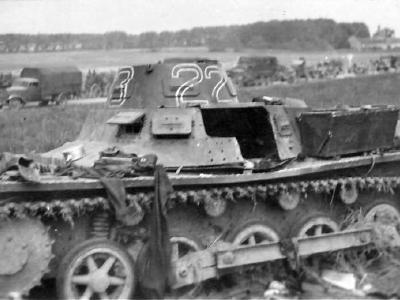

Panzer I ausf B number 223

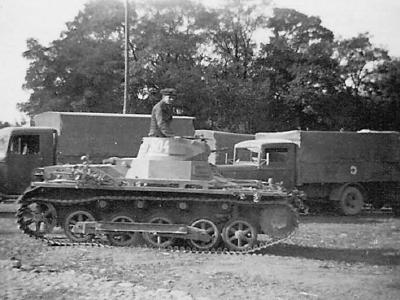

Panzer I Ausf B number 504

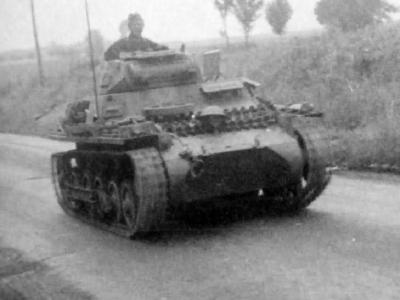

Panzer I Ausf B Sdkfz 101
Panzer I Ausf B Winter
Panzer I Ausf B, Poland 1939

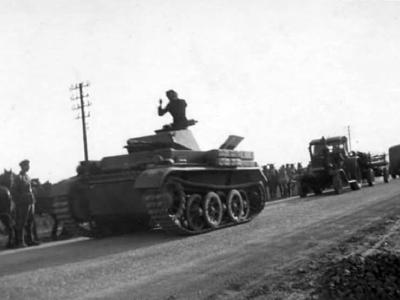

Panzer I Ausf C

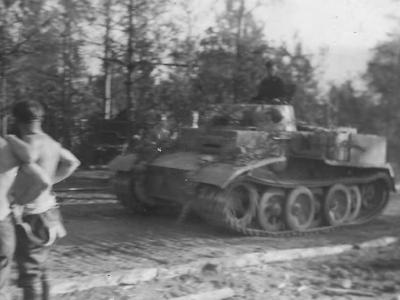

Panzer I ausf F
Panzer I Ausf. A tank

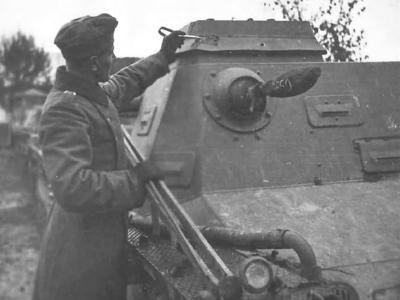

Panzer I befehl command tank

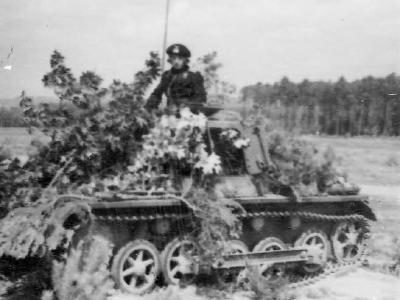

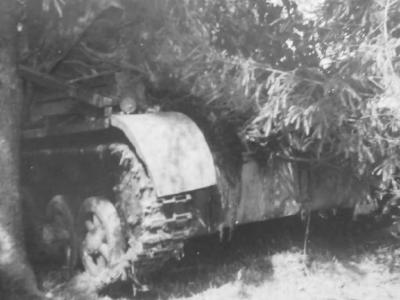

Panzer I befehl camouflaged

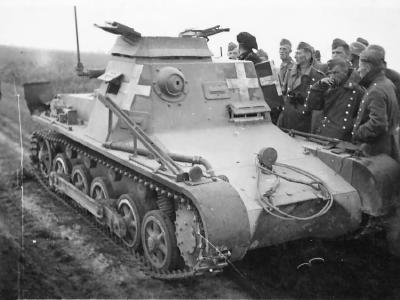

Panzer I Befehlspanzer I Poland September 1939

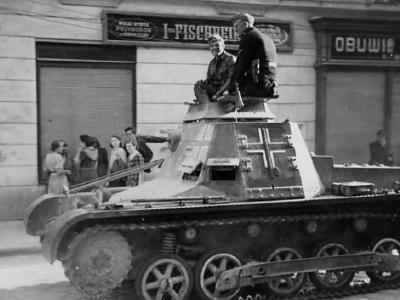

Panzer I Befelswagen in Rzeszow Poland

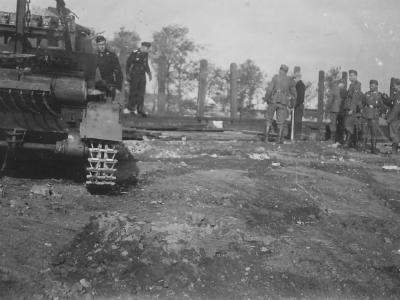

Panzer I Berge 9 Panzer Division

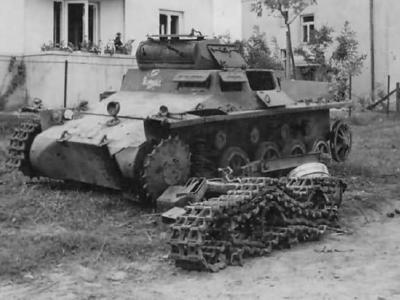

Panzer I destroyed

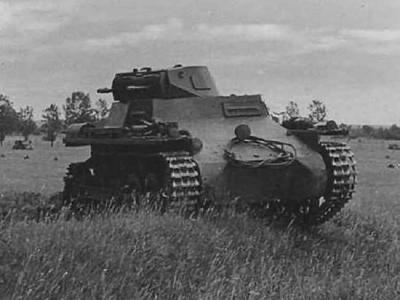

Panzer I destroyed France 1940

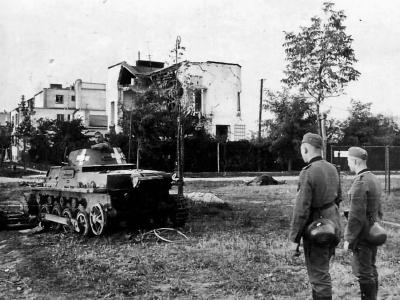

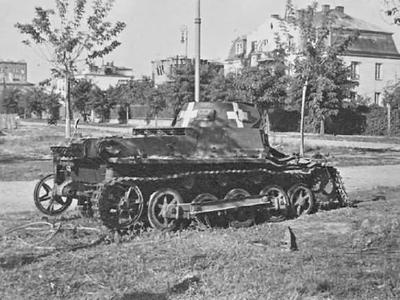

Panzer I destroyed in Poland 1939

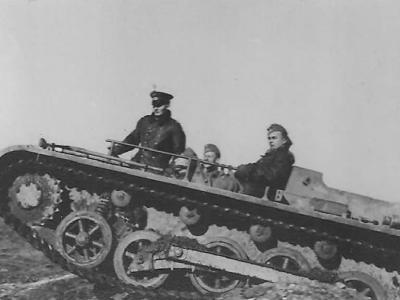

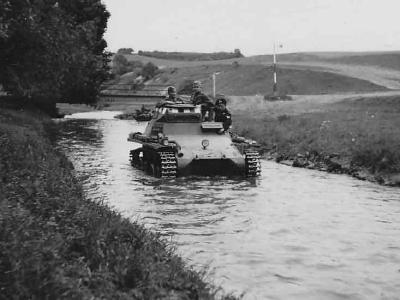

Panzer I Fahrschule
Panzer I Fahrschule

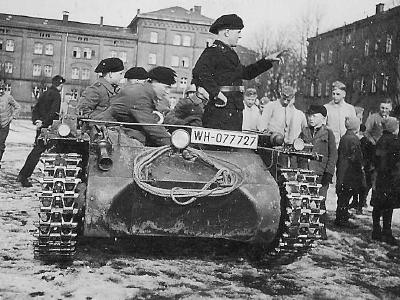

Panzer I Fahrschule WH 077727

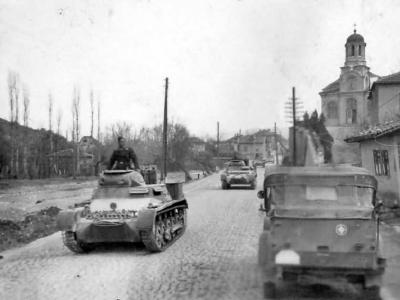

Panzer I in Russsia

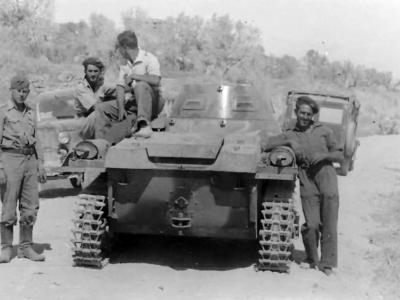

Panzer I in Spain

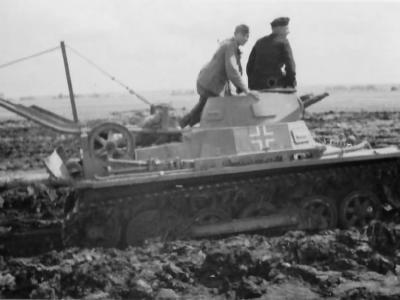

Panzer I Ladungsleger

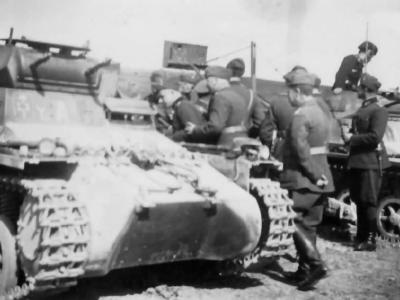

Panzer I Ladungsleger 2

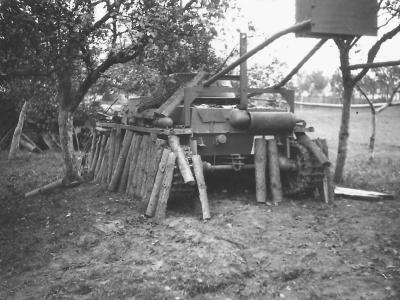

Panzer I Ladungsleger explosives layer

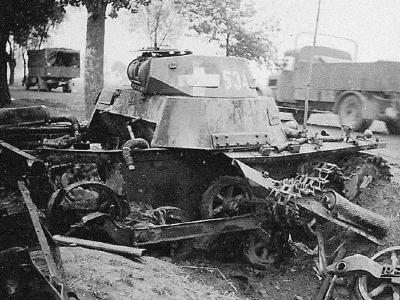

Panzer I number 534, Poland 1939

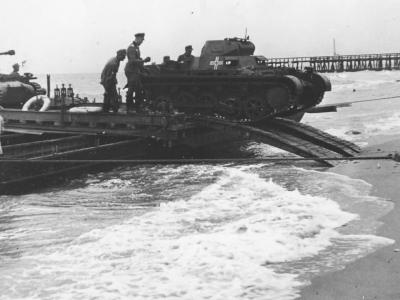

Panzer I of 2 Panzer Regiment training for Operation Seelowe Scheveningen Holland 1940

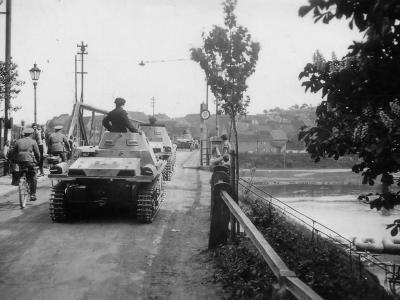

Panzer I of 7 the Panzer Division during the French campaign in 1940

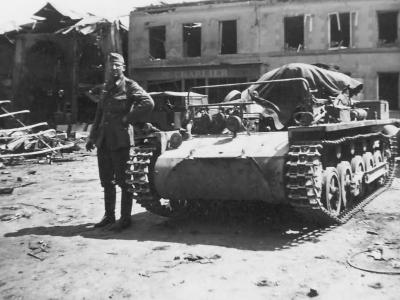

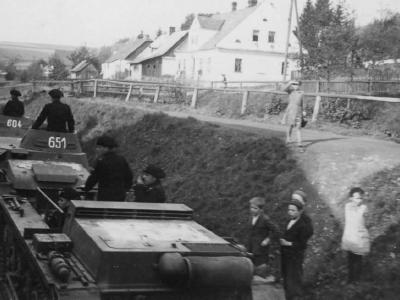

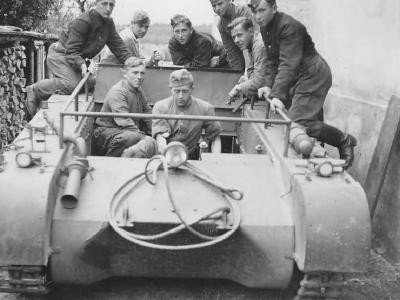

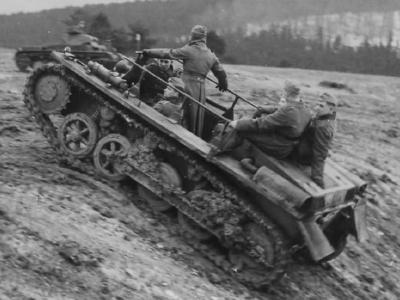

Panzer I ohne Aufbau

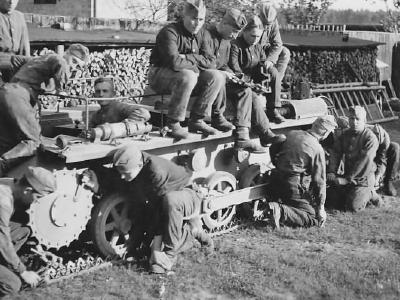

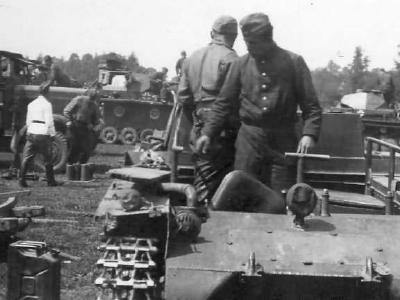

Panzer I ohne aufbau
Panzer I ohne Aufbau
Panzer I ohne Aufbau
Panzer I ohne Aufbau
Panzer I ohne Aufbau

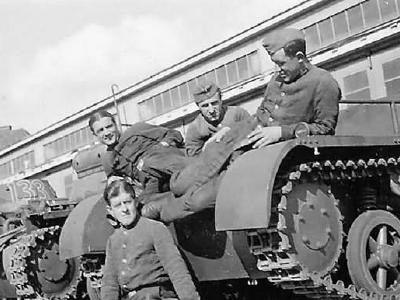

Panzer I ohne aufbau and crew

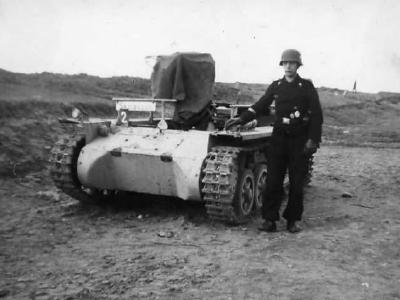

Panzer I ohne Aufbau and soldier

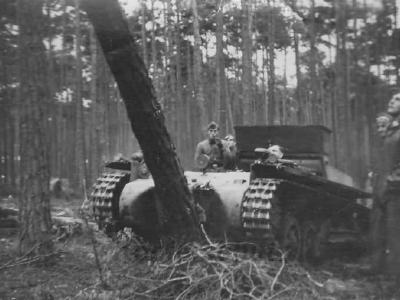

Panzer I ohne Aufbau with box on top

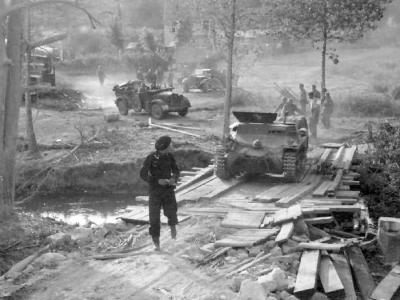

Panzer I ohne Turm France 1940

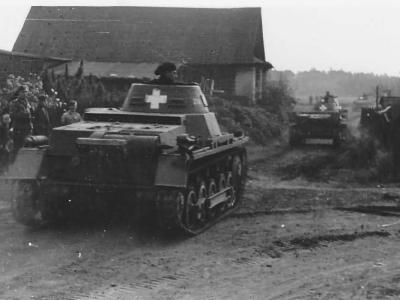

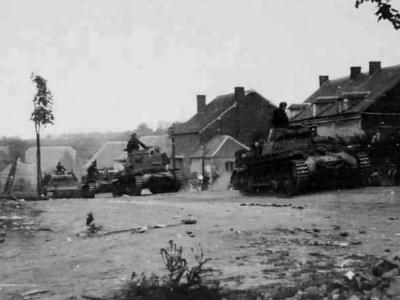

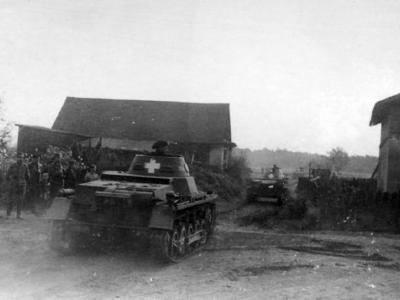

Panzer I Poland 1939

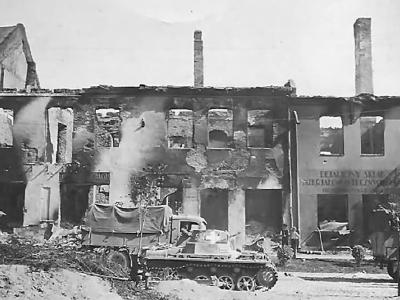

Panzer I Radomsko Poland 1939

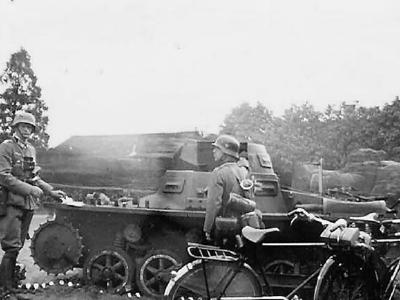

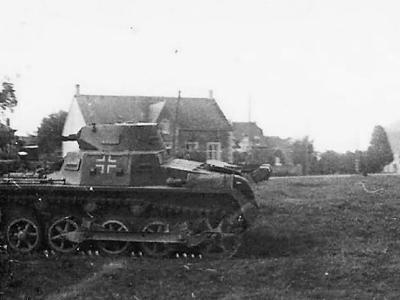

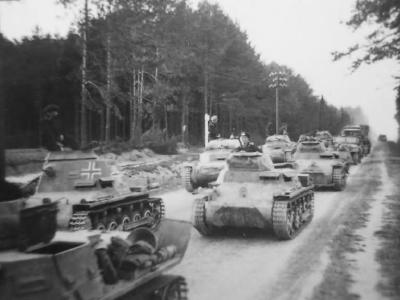

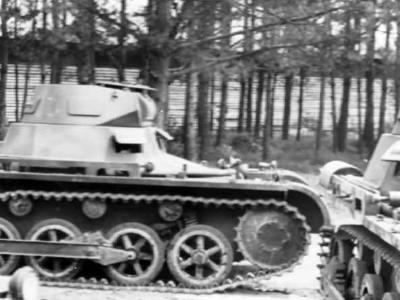

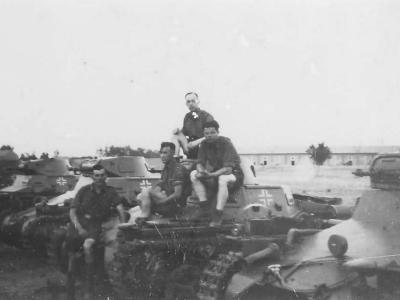

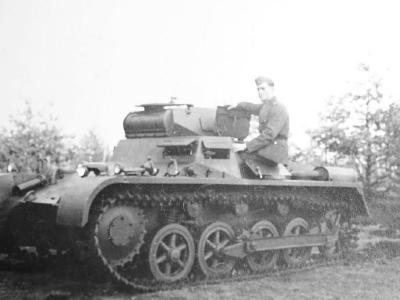

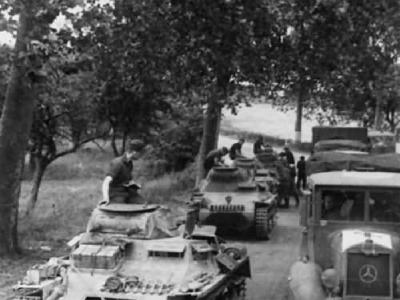

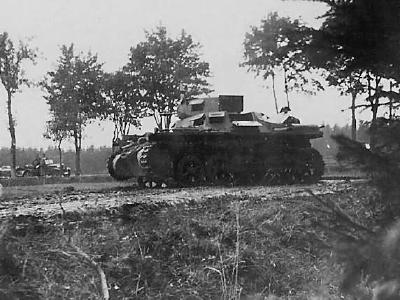

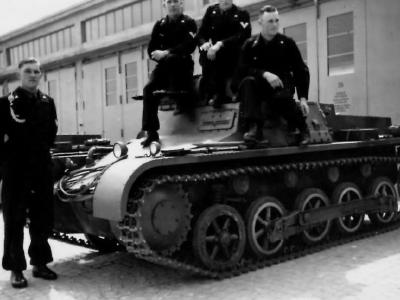

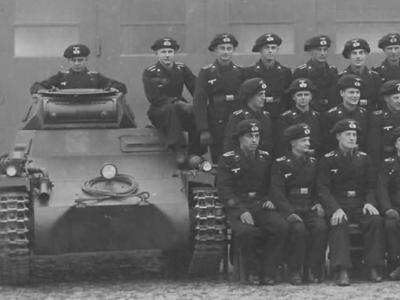

Panzer I tank
Panzer I tank
Panzer I tank
Panzer I tank
Panzer I tank
Panzer I tank
Panzer I tank
Panzer I tank
Panzer I tank
Panzer I tank
Panzer I tank
Panzer I tank
Panzer I tank Ausf B

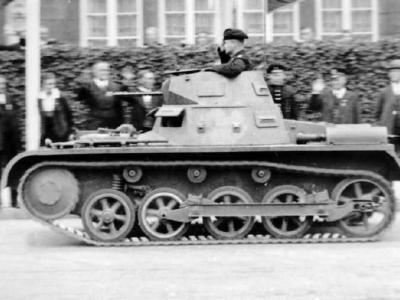

Panzer I tank during military parade
Panzer I tank front view

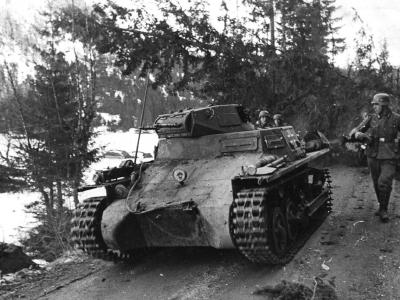

Panzer I tank in Norway 1940

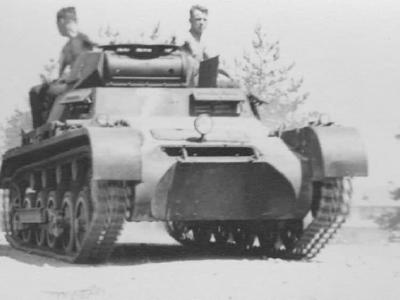

Panzer I tank on road

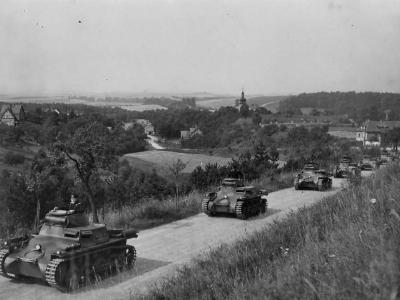

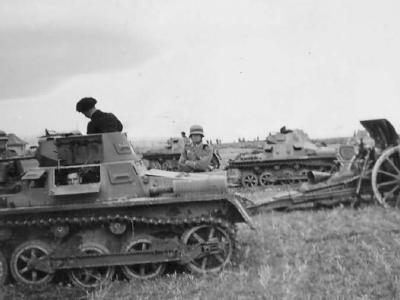

Panzer I tank SdKfz 101

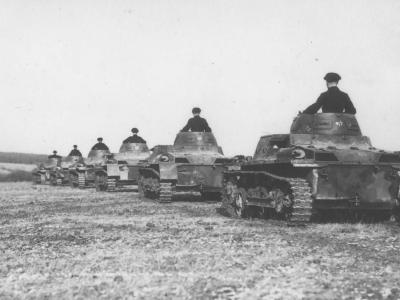

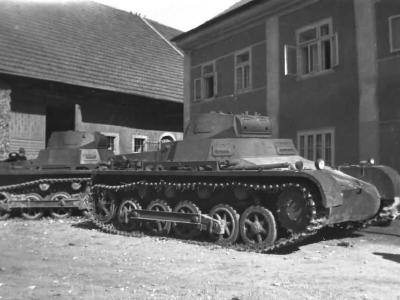

Panzer I tanks

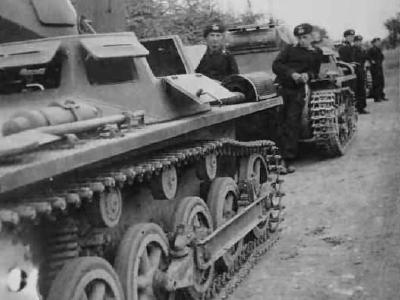

Panzer I tanks column 2

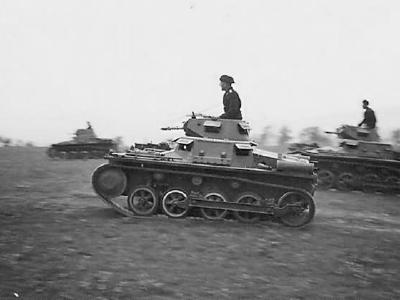

Panzer I tanks during a pre-war exercise
Panzer I tanks during a training operation

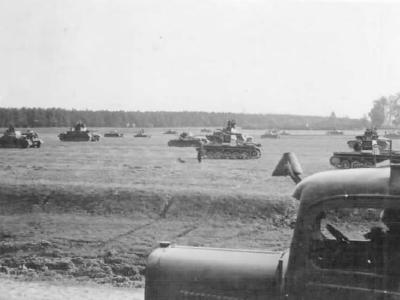

Panzer I tanks Mokra area 2 September1939 Poland

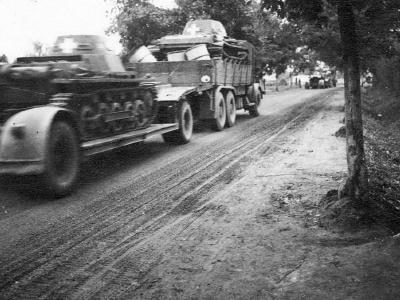

Panzer I transported on Henschel truck and trailer

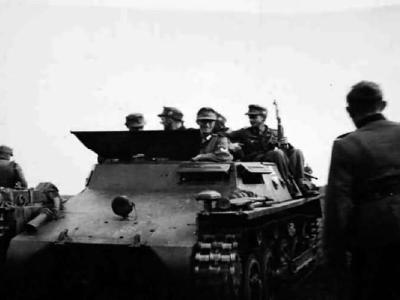

Panzer I Turretless

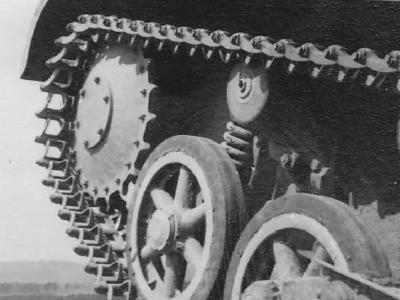

Panzer I wheels

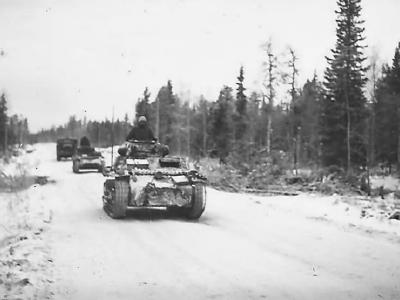

Panzer I Winter Kiestinki Finland

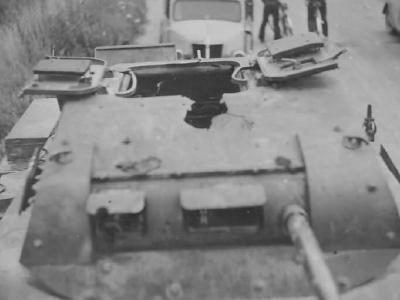

Panzer I with damaged turret France 1940

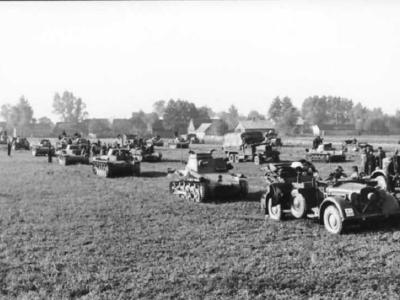

Panzerbefehlswagen and Panzer II tanks 1939 22

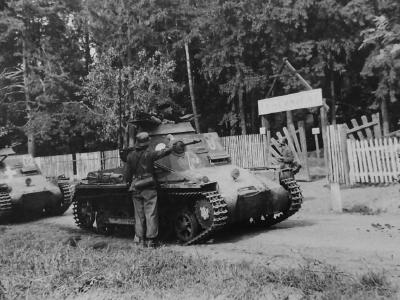

Panzerbefehlswagen I in Galasko near Lwow Poland 1939

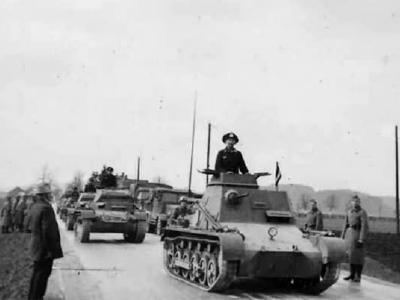

Panzerbefehlswagen Kl PzBfWg Sd.Kfz. 265

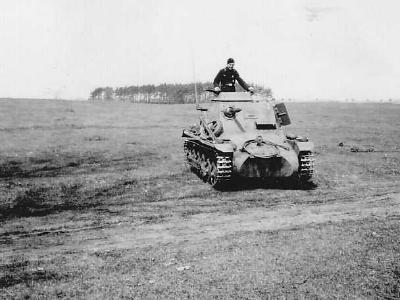

Panzerbefehlswagen Sd Kfz 265

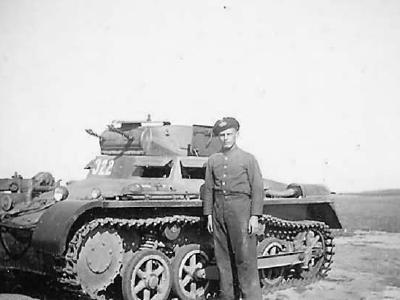

Panzerkampfwagen I (MG) Ausführung A number 322

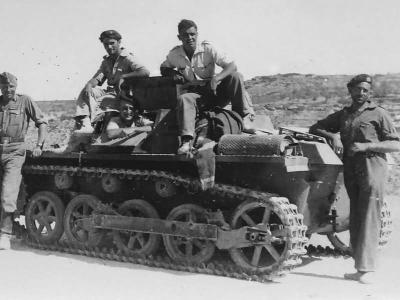

Panzerkampfwagen I (MG) Ausführung A of the Legion Condor, Spain
Panzerkampfwagen I (MG) Ausführung A, France 1940
Panzerkampfwagen I (MG) Ausführung B tanks 1939

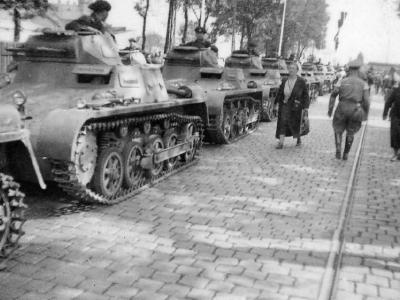

Panzerkampfwagen I Ausf A tanks

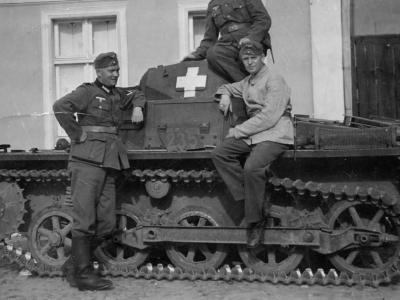

Panzerkampfwagen I Ausf. A 235, September 1939
Panzerkampfwagen I Ausf. B and Panzer II

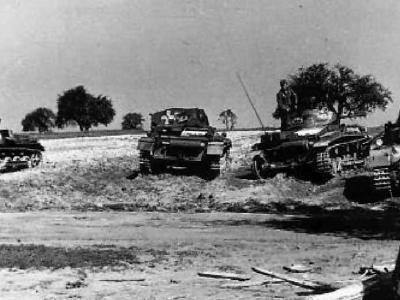

Panzers in Poland 1939

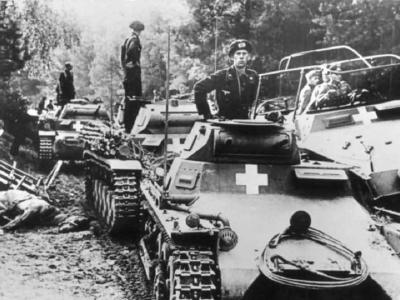

Poland 1939 Panzer I and II tanks

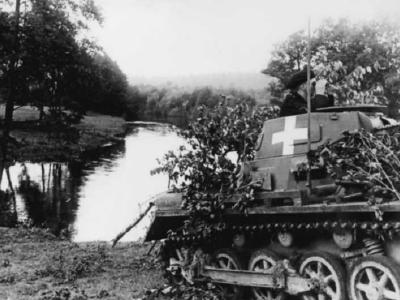

Poland 1939 Panzer I tank

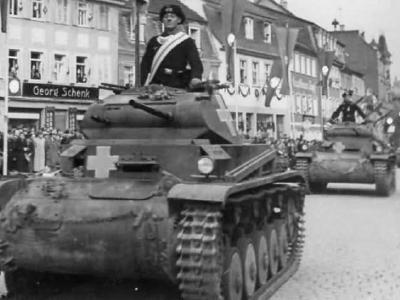

Pz.Kpfw II from 4 Panzer Division, Panzer Regiment 36, 1939
PzKpfw I (M.G.) Ausf. A tank
PzKpfw I Ausf A tank, Sd.Kfz. 101

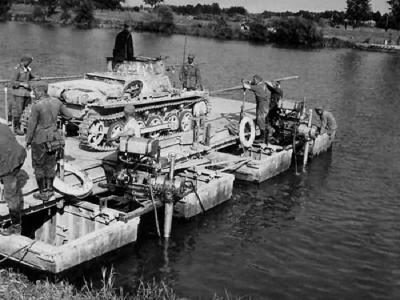

PzKpfw I Ausf B tank
PzKpfw I befehl

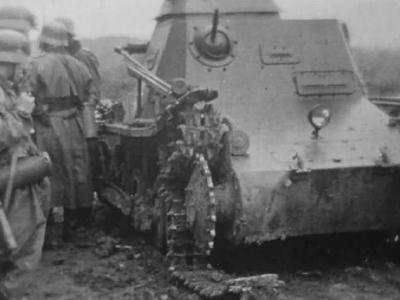

PzKpfw I befehl variant

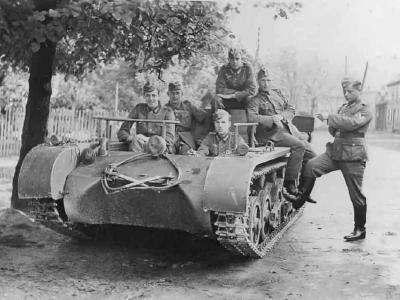

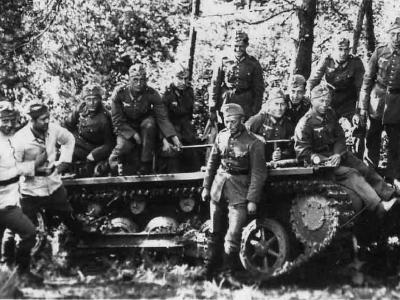

PzKpfw I ohne Aufbau
PzKpfw I ohne Aufbau photo

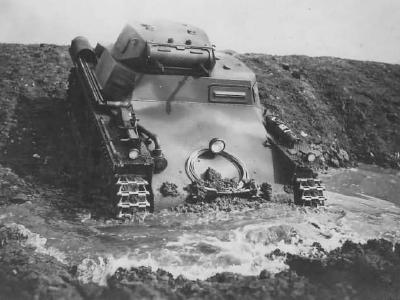

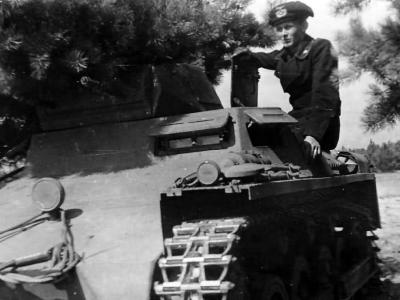

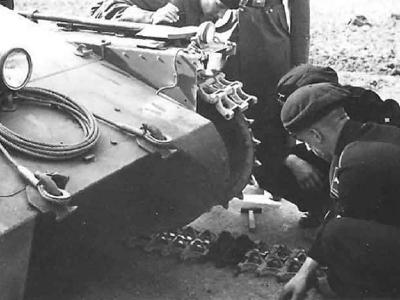

PzKpfw I tank
PzKpfw I tank
PzKpfw I tanks
SdKfz 265 Panzerbefehlswagen Panzer I command version

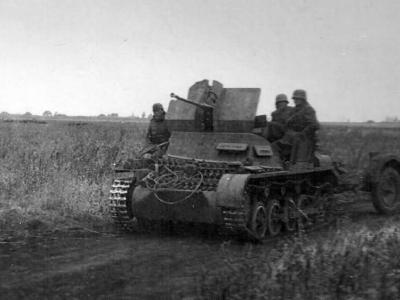

Self propelled anti-aircraft gun Flakpanzer I of the Flak-Abteilung (mot) 614, Eastern Front

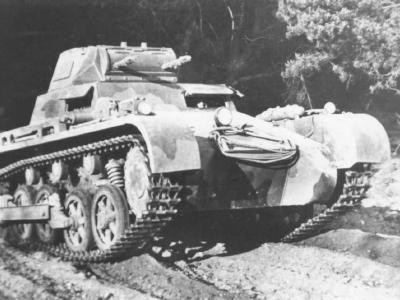

Tank PzKpfw I (MG) Ausf. A
Panzer I ( Panzerkampfwagen I, PzKpfw I, SdKfz 101) was a light tank produced in Germany in the 1930s. Panzer I made up a core of the Wehrmacht armoured divisions fleet during invasion on Poland in September 1939 and during West campaign in 1940. Germany also used Panzer I in the Balkans, North Africa (Deutsches Afrika Korps) and on the Easten Front 1941 - 1942. After introduction of new types of AFV into service, the Panzer I tanks were directed to auxiliary tasks and training. Armament: 2 × 7.92 mm MG13 machine guns. Production: 1493 tanks.
Data:
|
version |
Panzer I ausf A SdKfz 101 1 A LaS Krupp |
Panzer I ausf B SdKfz 101 1 B LaS May |
Panzer I ausf C VK601 |
Panzer I ausf F VK1801 |
Kleine Panzerbefehlswagen SdKfz 265 3 Kl B (command variant) |
|
crew |
2 |
2 |
2 |
2 |
3 |
|
armor |
hull: front - 8-13 mm sides - 13-14,5 mm rear - 13 mm top - 8 mm belly - 5 mm turret: mantlet - 15 mm front - 14 mm sides and rear - 13 mm top - 8 mm |
hull: front - 8-13 mm sides - 13-14,5 mm rear - 13 mm top - 8 mm belly - 5 mm turret: mantlet - 15 mm front - 14 mm sides and rear - 13 mm top - 8 mm |
hull:front - 30 mmsides - 20 mm
turret: mantlet - 30 mm front - 30 mm sides - 14,5 mm |
hull:front - 80 mmsides - 80 mm
rear - 60 and 80 mm turret: mantlet - 80 mm front - 80 mm sides - 80 mm top - 20 mm |
front: 13 mmsides: 13 mmtop: 8 mm
rear : 13 mm belly: 5 mm |
|
weight (kg) |
5400 |
6000 |
8000 |
21000 |
5880 |
|
length (mm) |
4020 |
4420 |
4195 |
4375 |
4420 |
|
width (mm) |
2060 |
2060 |
1920 |
2640 |
2060 |
|
height (mm) |
1720 |
1720 |
2010 |
2050 |
1990 |
|
wheel base (mm) |
1670 |
1600 | 2100 | 1670 | |
|
track contact (mm) |
2470 |
2470 | 2200 | 2200 | 2470 |
|
engine |
Krupp M305 4 cylinders, air cooled, 3500 cm3 60 hp (44,74 kW) at 2500 rpm |
Maybach NL 38 TR 6 cylinders, water cooled, 3800 cm3 100 hp at 3000 rpm |
Maybach HL 45P 6 cylinders, water cooled, 4678 cm3 150 hp at 3800 rpm |
Maybach HL 45P 6 cylinders, water cooled, 4678 cm3 150 hp at 3800 rpm |
Maybach NL 38 TR 6 cylinders, water cooled, 3800 cm3 100 hp at 3000 rpm |
|
transmission |
ZF F.G. 35, 5 forward, 1 reverse |
ZF F.G. 35, 5 forward, 1 reverse | VG 15319, 8 forward, 1 reverse | SSG 47, 6 forward, 1 reverse | ZF F.G. 31, 5 forward, 1 reverse |
|
fuel capacity (l) |
144 |
146 | 170 | 180 | 146 |
|
range (road km/ off-road km) |
145 / 100 |
140 /115 |
300/190 |
150/? |
170/115 |
|
speed (km/h) |
37 (20-25 off-road) |
40 |
79 |
25 |
40 |
|
tracks |
Kgs 67 280/90 |
Kgs 67 280/90 | Kgs 62/290/90 | Kgs 61 500/130 | Kgs 67 280/90 |
|
number of links per track |
89 |
89 | 89 | 53 | 89 |
|
trench crossing (mm) |
1400 |
1400 | 1200 | 1500 | 1400 |
|
vertical obstacle (mm) |
370 |
370 | 300 | 330 | 330 |
|
fording ability (mm) |
600 |
600 | 875 | 570 | 600 |
|
climbing ability (degrees) |
30 |
30 | 45 | 30 | 30 |
|
circulation (mm) |
2100 |
2100 | 1200 | 1500 | 2100 |
|
manufacturer |
Krupp-Gruson, Henschel & Sohn, MAN |
Henschel,MAN,Wegmann | Krauss Maffei,Daimler - Benz | Krauss Maffei, Daimler - Benz | Henschel, MAN, Daimler - Benz |
