Destroyed Dicker Max Summer 1941

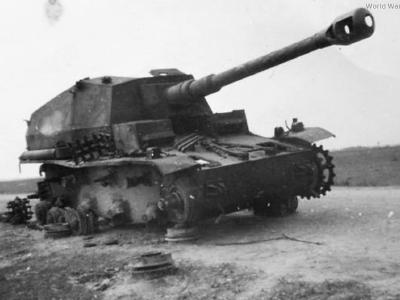

Destroyed by internal explosion Dicker Max near Borisow, Summer 1941

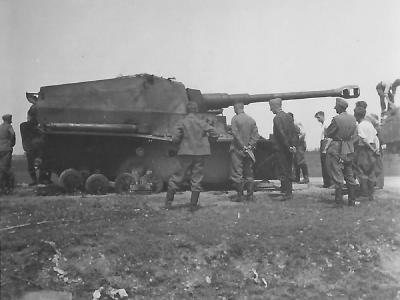

Destroyed by internal explosion Dicker Max near Borisow

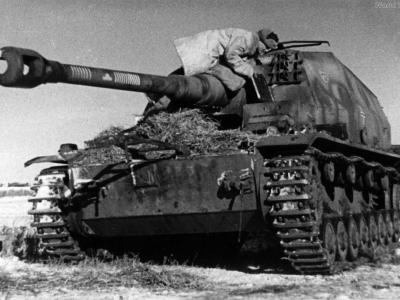

Dicker Max captured near Stalingrad 1942

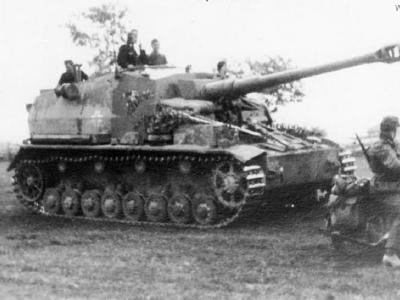

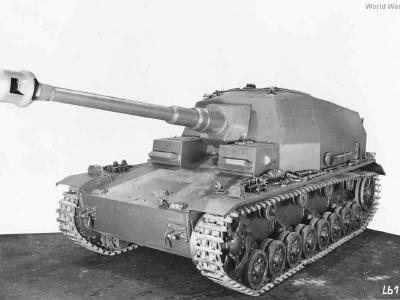

Pz Sfl IVa factory photo
10.5cm K18 auf Panzer Selbstfahrlafette IVa Dicker Max
Dicker Max and crew of the Schwere Panzerjager Abteilung 521

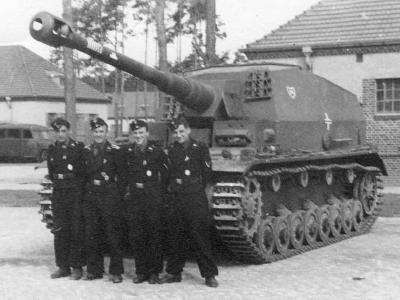

crew of the Dicker Max Schwere Panzerjager Abteilung 521

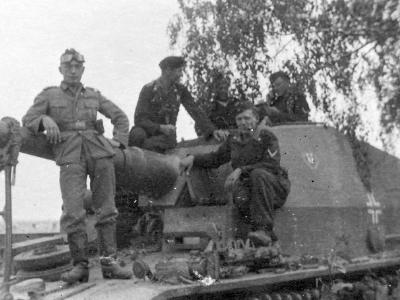

Dicker Max of the Schwere Panzerjager Abteilung 521

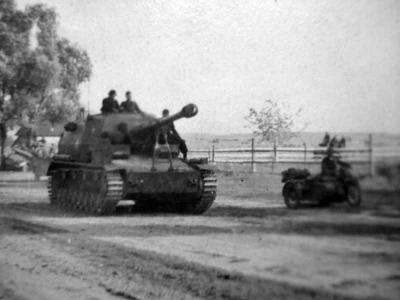

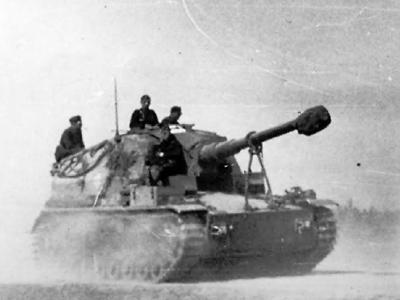

Dicker Max on move

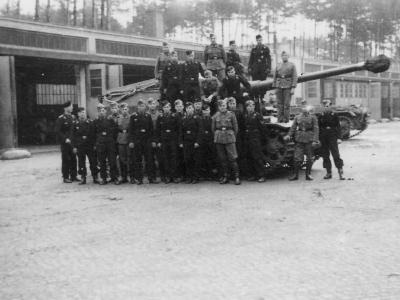

German tank destroyer Dicker Max
Dicker Max being transported on rail car

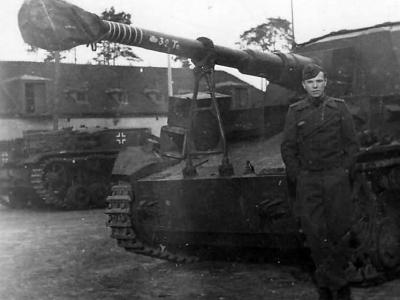

Dicker Max 10,5 cm K18 auf Panzer Selbstfahrlafette IVa
Dicker Max kill rings on barrel Panzerjager Abteilung 521

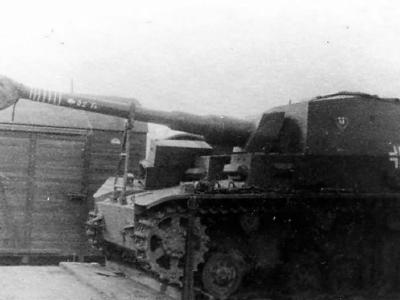

Dicker Max 521 schwere Panzerjager Abteilung

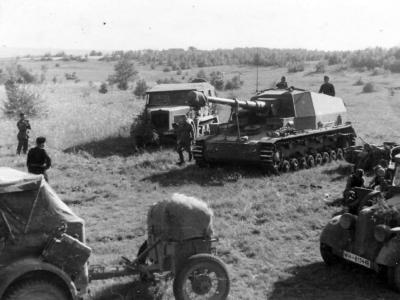

Dicker Max 10.5 cm K18 auf Panzer Selbstfahrlafette IVa Russia

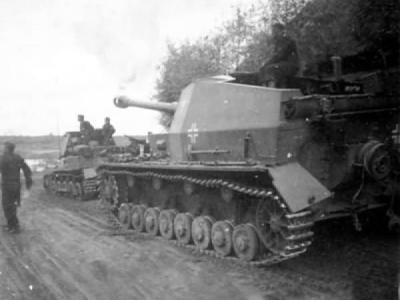

Dicker Max 10.5 cm K18 auf Panzer Selbstfahrlafette IVa Russia 9
Dicker Max self-propelled gun

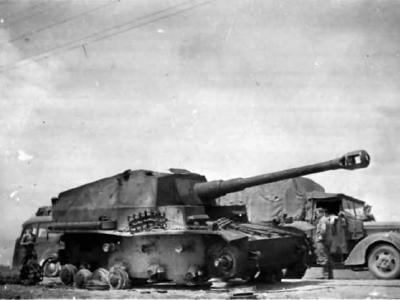

Dicker Max 10.5 cm K18 auf Panzer Selbstfahrlafette IVa Russia 3
10.5 cm K18 auf Panzer Selbstfahrlafette IVa Russia Dicker Max
Dicker Max and 521 schwere Panzerjager Abteilung soldiers photo

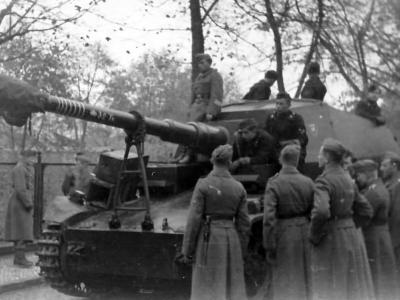

Dicker Max and 521 schwere Panzerjager Abteilung soldiers
Dicker Max 10.5 cm K18 auf Panzer Selbstfahrlafette IVa

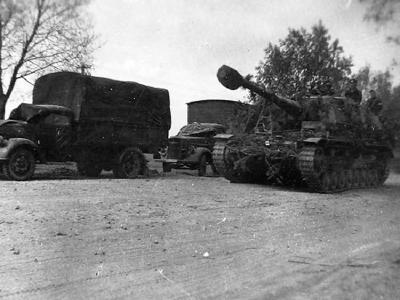

Tank destroyer Dicker Max camouflage
Self propelled gun Dicker Max
10.5 cm K gepanzerte Selbstfahrlafette “Dicker Max” was a prototype self propelled gun used by Germany during World War II. Gun: 10.5 cm schwere Kanone 18. Production: 2 guns.
Specifications:
crew | 5 |
lenght | 7470 mm (5800 mm without gun) |
width | 2860 mm |
height | 2530 mm |
weight | 22 tons |
armor / angle: | 50 mm hull front, 10 mm hull rear. Super structure: 20 and 10 mm |
engine: | Maybach HL 66 Pla 180 hp (134 kW) at 3200 rpm. 6 cylinder, water-cooled, gasoline 6600 cm3 |
transmission | ZF SSG 46, 6 forward, 1 reverse |
tracks | Kgs 6111 380/120 |
number of links per track | 99 |
max speed | 27 km/h |
range | 170 km (120 km off-road) |
grade | 27° |
trench crossing | 2300 mm |
vertical obstacle | 650 mm |
fording | 1050 mm |
ground clearance | 400 mm |
ammunition | 26 |
secondary armament | 3x MP38 or MP40 (576 rounds) |
production | 2 |
manufacturer | Krupp-Gruson Werk AG |
Plastic model kits:
1/35: Trumpeter 00348 – German Pz.Sfl. IVa “Dicker Max”; 204 parts
1/35: Dragon 6357 39-45 series – 10.5cm K.Pz.Sfl.IVa “Dicker Max”
1/72: Trumpeter 07108 – German Pz.Sfl.Iva Dicker Max; 100 parts
