SdKfz 10

Click the thumbnails to enlarge them

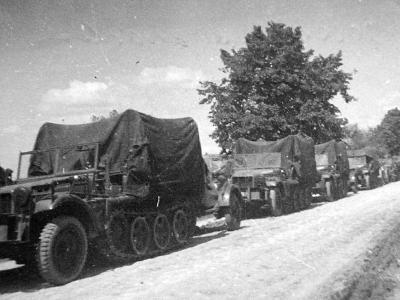

1to Zugkraftwagen SdKfz 10/4 mit 2cm Flak France 1940

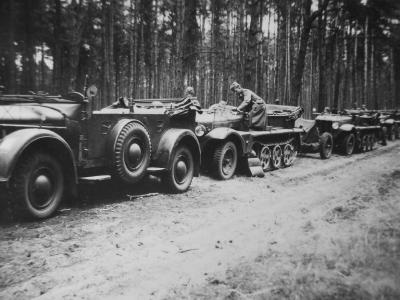

1to Zugkraftwagen SdKfz.10 halftracks and Horch 901 PKW

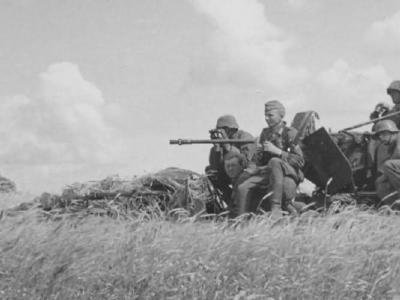

2 cm flak on SdKfz 10/4

2 cm flakvierling 30 on SdKfz 10/4

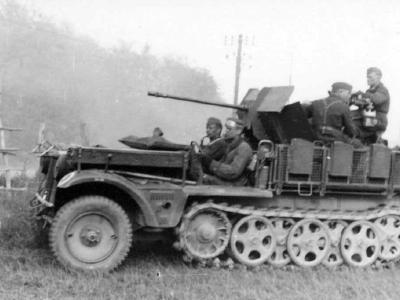

2cm Flak 30 auf Fahrgestell Zugkraftwagen 1t SdKfz 10/4

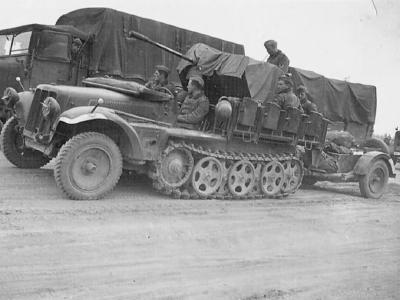

2cm FlaK auf Fahrgestell Zugkraftwagen 1t Sd.Kfz.10

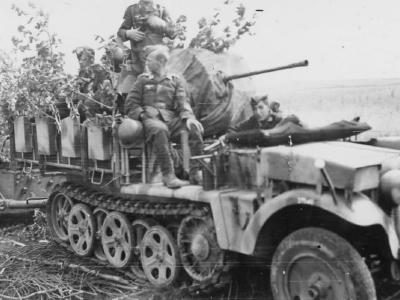

2cm FlaK auf Fahrgestell Zugkraftwagen 1t Sd.Kfz.10/4

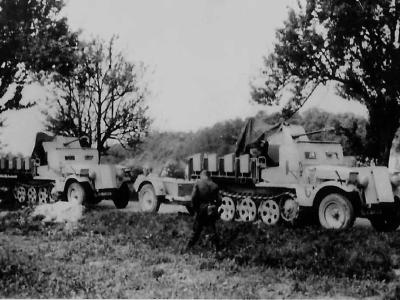

Armored Sd.Kfz. 10/5 half-tracks

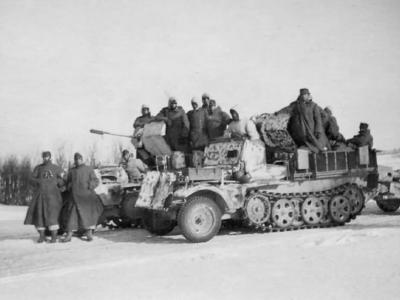

armored Sd.Kfz.10/4 with winter camouflage

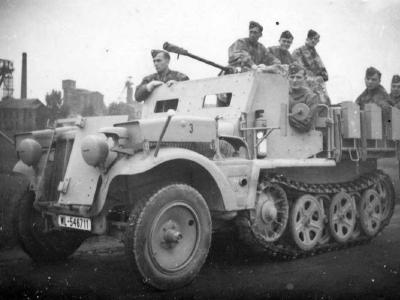

Armored SdKfz 10 5 Luftwaffe

Demag D7 halftrack SdKfz 10/4

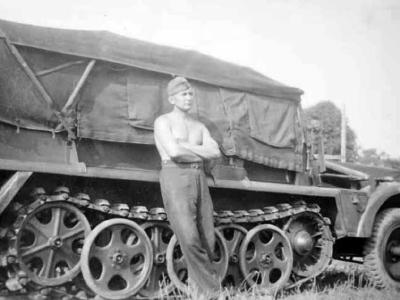

Demag D7 SdKfz 10

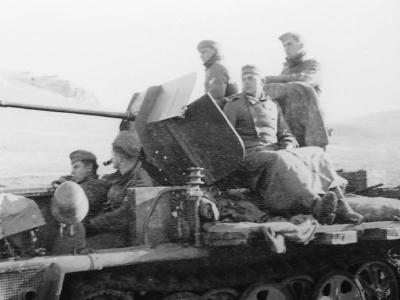

Demag D7 SdKfz 10/4

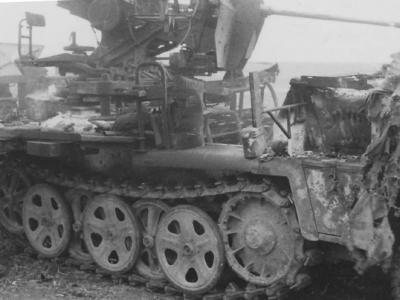

destroyed Sd.Kfz.10/4

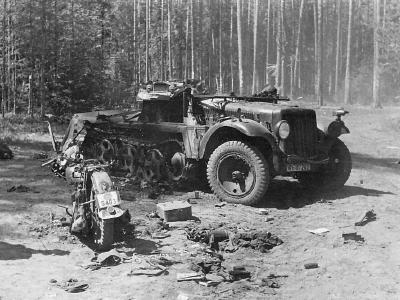

destroyed SdKfz 10

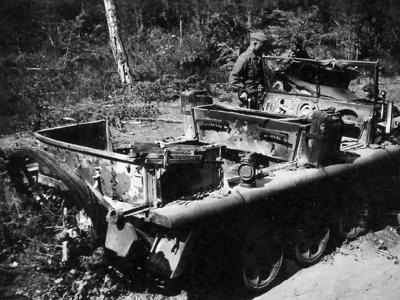

Destroyed SdKfz 10 Eastern Front

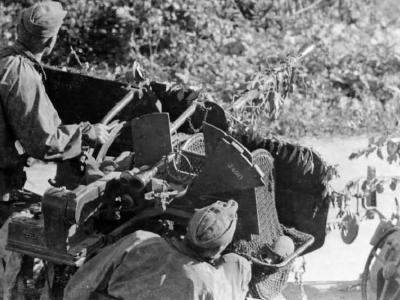

Flak 30 on SdKfz 10/4

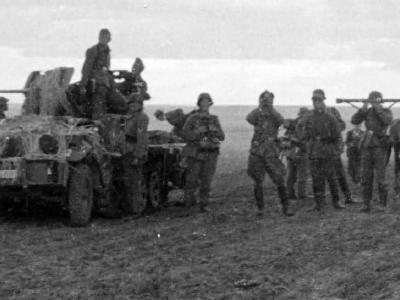

German AA halftrack SdKfz 10/4 5

German AA halftrack SdKfz 10/4 with trailer 11

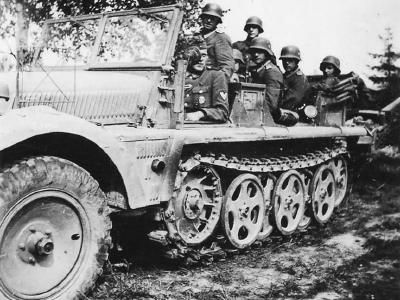

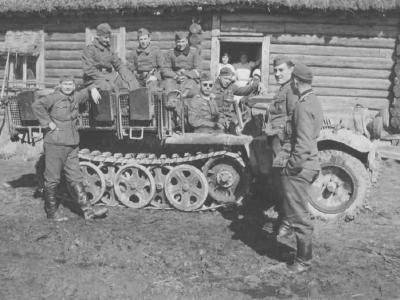

German Army Sd.Kfz. 10 halftrack vehicle

German half track SdKfz 10

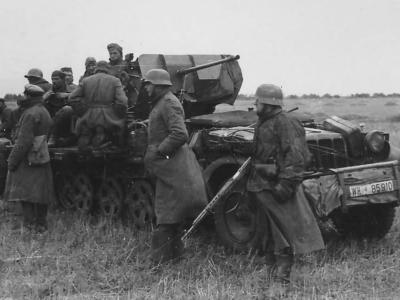

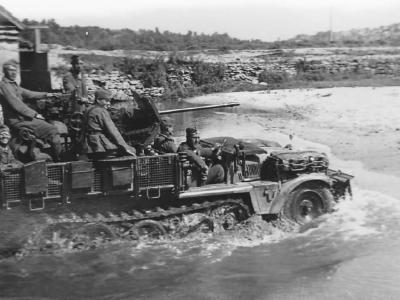

German half track SdKfz 10/4

German halftrack Sd.Kfz. 10

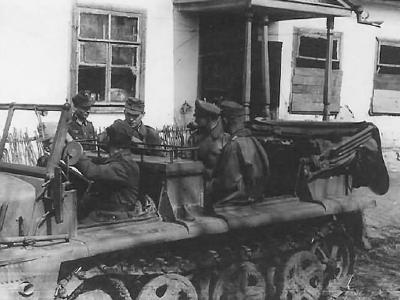

German halftrack Sd.Kfz. 10 15

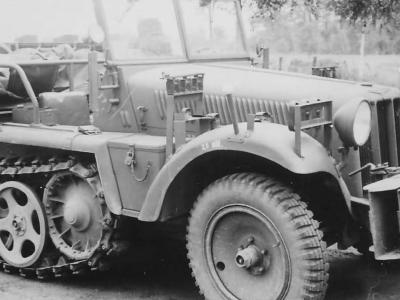

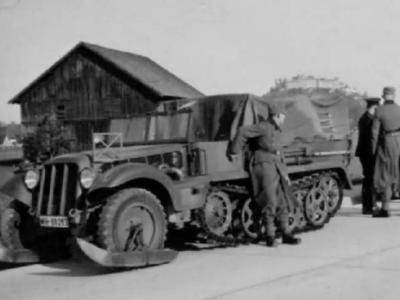

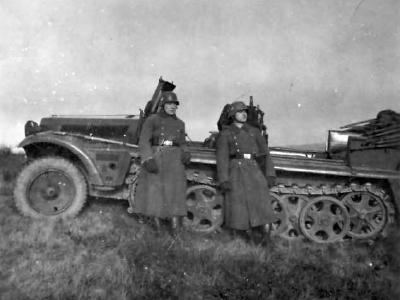

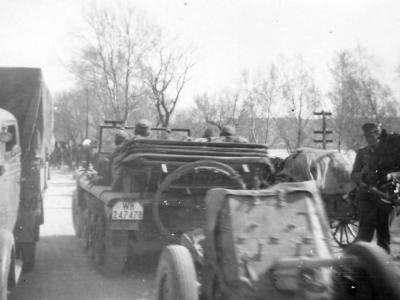

german halftrack SdKfz 10

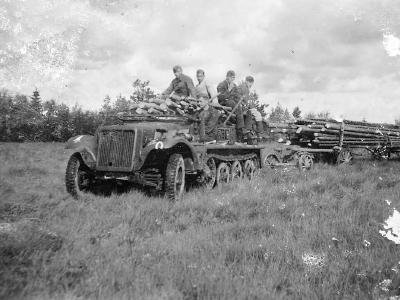

german halftrack SdKfz 10 20

german halftrack SdKfz 10 flak model 2

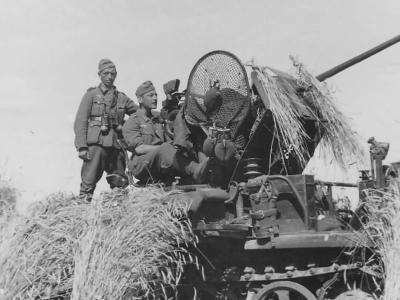

german halftrack SdKfz 10/4 flak model 3

german halftrack SdKfz 10 flak model 3

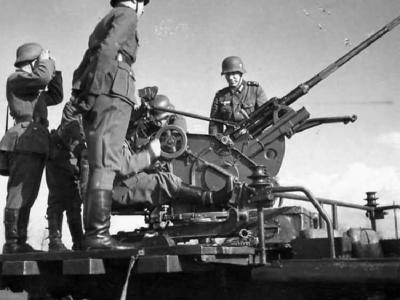

german halftrack SdKfz 10 flak model 5

german halftrack SdKfz 10 flak model 8

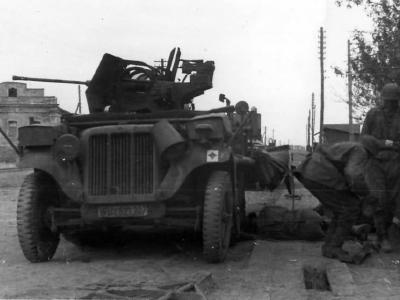

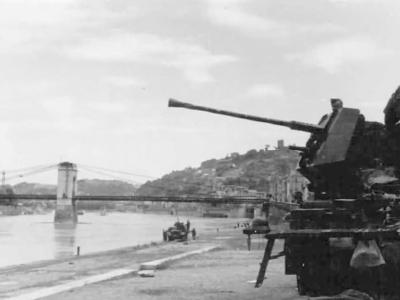

german halftrack SdKfz 10 flak model 9

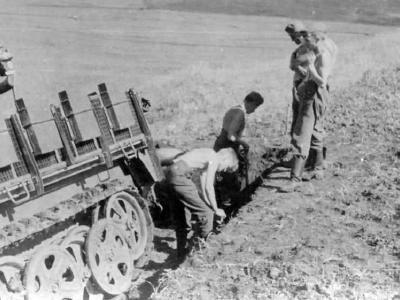

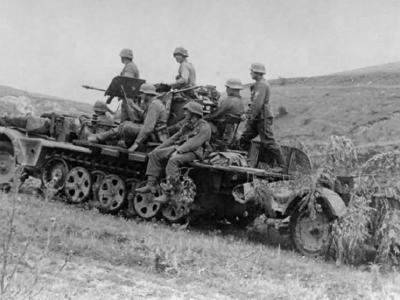

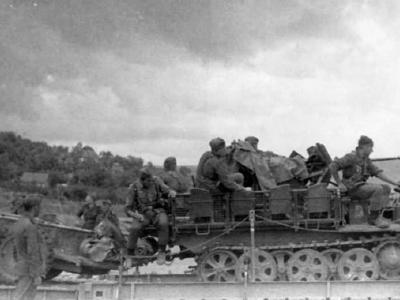

german halftrack SdKfz 10/4

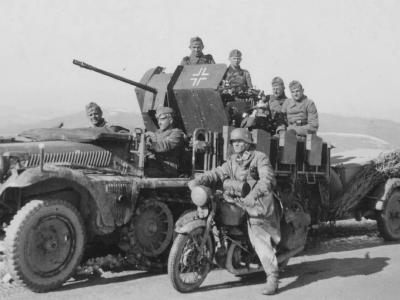

german halftrack SdKfz 10/4 flak model 1

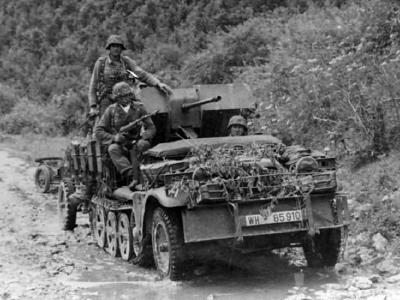

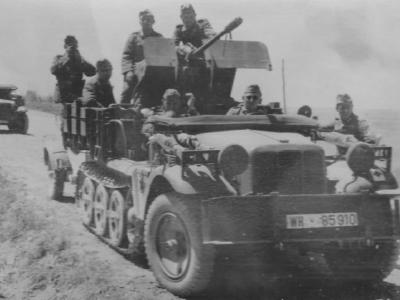

German halftrack SdKfz 10/4 WH-85910

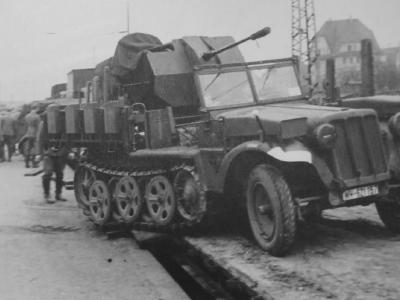

german halftrack SdKfz 10/5 flak model 4

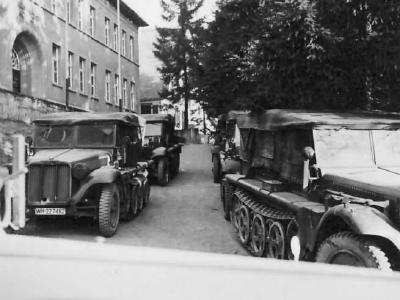

german halftracks SdKfz 10

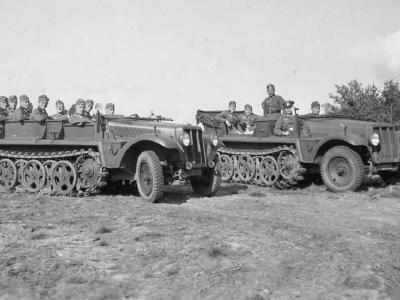

German halftracks SdKfz 10 photo

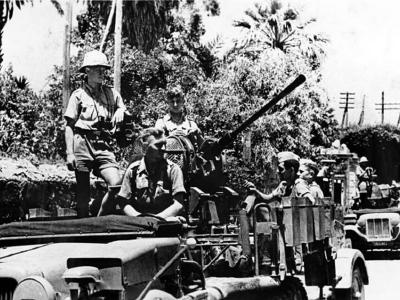

German self-propelled anti-aircraft gun SdKfz 10 Sicily 1943

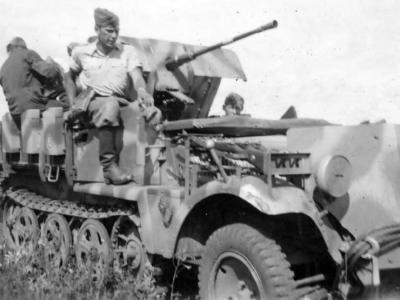

german halftrack SdKfz 10/4 flak model 6

German self-propelled anti-aircraft gun SdKfz 10/4 6

german ww2 half track Sd Kfz 10/4 photo

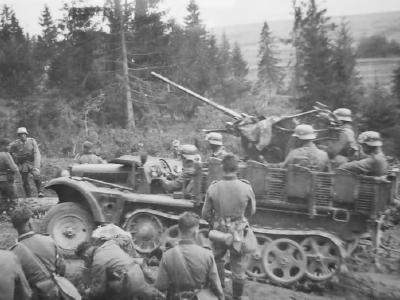

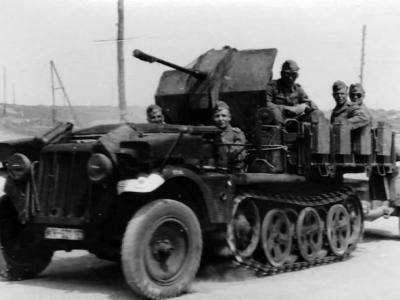

german ww2 half track SdKfz 10/4

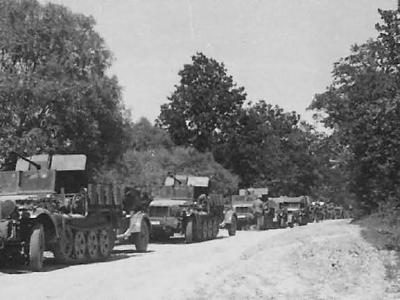

german ww2 half tracks SdKfz 10/4

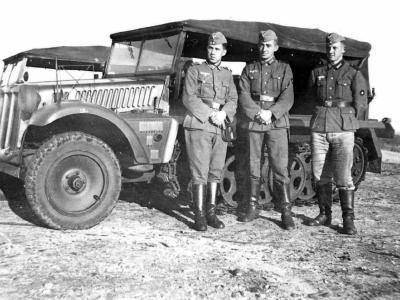

Demag D7 Sd.Kfz. 10 half-tracked prime mover

Halftrack Demag SdKfz 10

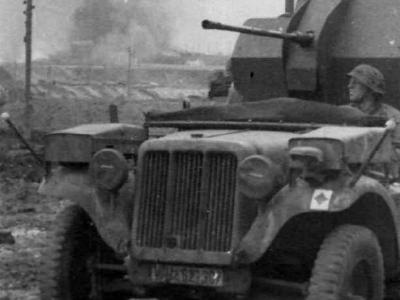

halftrack german SdKfz 10/4

halftrack SdKfz 10 winter

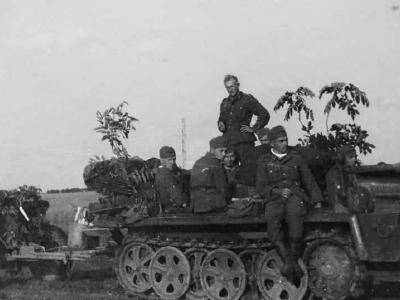

halftrack SdKfz10 and pak gun

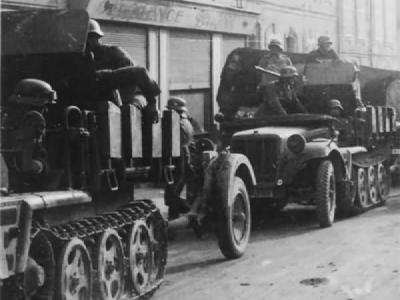

halftracks SdKfz 10/4 in France

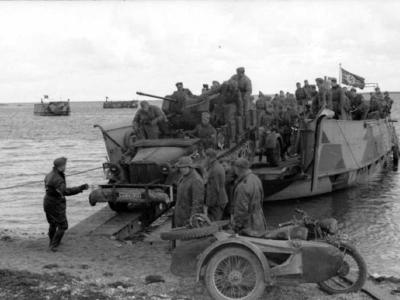

Landungsboot and SdKfz 10 1941

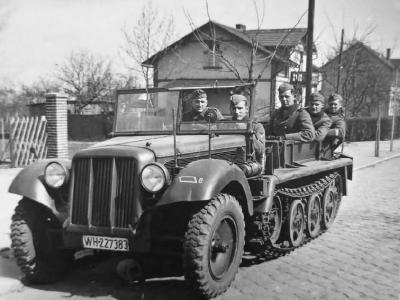

leichter Zugkraftwagen 1 t (Sd.Kfz.10) early

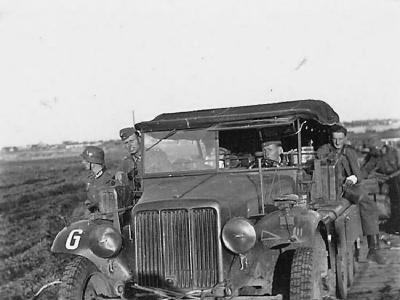

leichter Zugkraftwagen 1 t (Sd.Kfz.10) of the Panzer Group Guderian

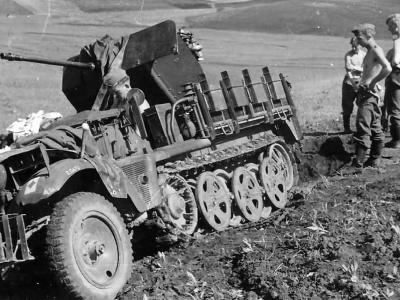

Sd Kfz 10 4 flak 30

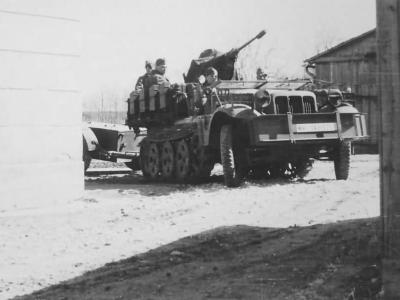

Sd Kfz 10 4 flak 30 Russia

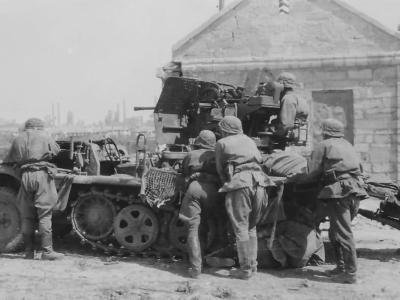

Sd Kfz 10 4 flak in combat

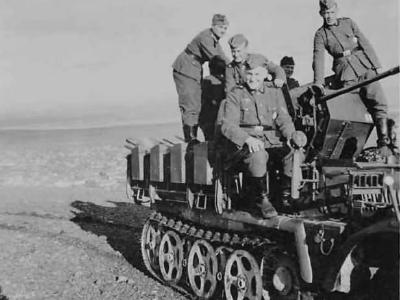

Sd Kfz 10 4 flak photo

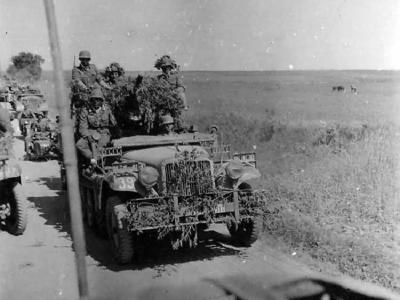

Sd Kfz 10 Demag D7 halftrack

Sd Kfz 10 Demag D7 leichter Zugkraftwagen 1t

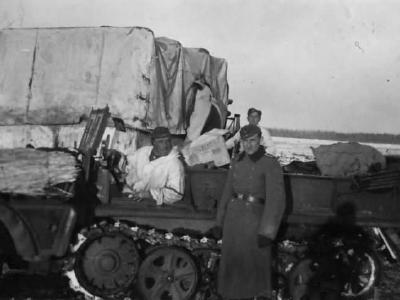

Sd Kfz 10 Demag leichter Zugkraftwagen 1t

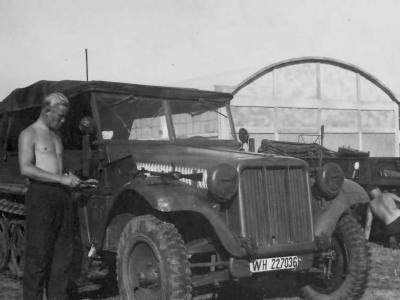

Sd Kfz 10 leichter Zugkraftwagen 1t Demag D7

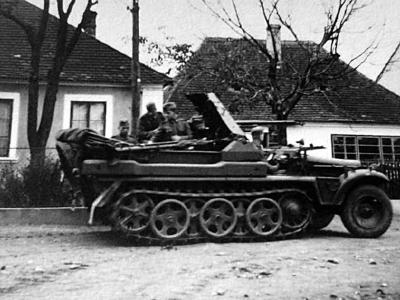

Sd Kfz 10 with Pak 36

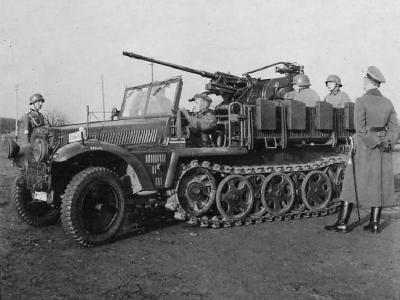

Sd Kfz 10/4 20 mm Flak

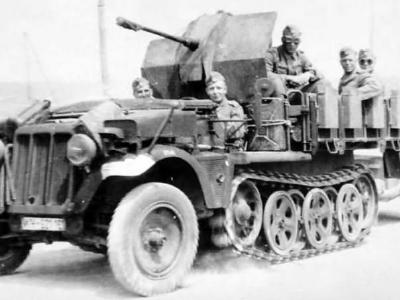

Sd Kfz 10/4 Demag D7 flak version

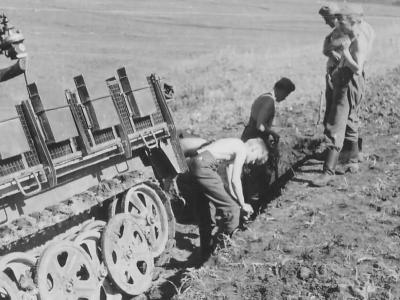

Sd Kfz 10/4 flak 30 halftrack

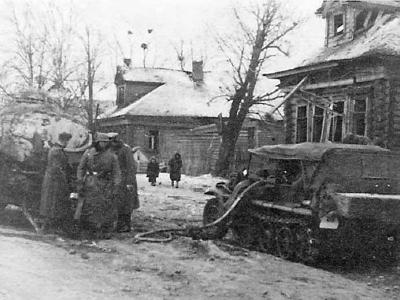

SdKfz 10 being refuelled – Eastern Front

Sd.Kfz. 10 being refuelled, winter Eastern Front

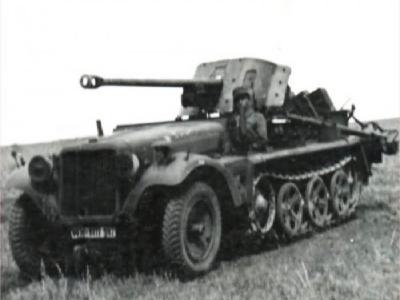

Sd.Kfz. 10 with 5 cm Pak 38

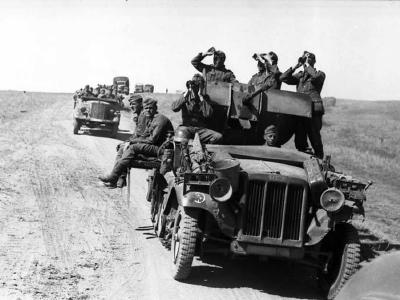

Sd.Kfz. 10/4 1942 Eastern Front

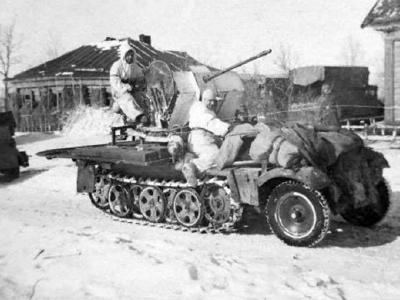

Sd.Kfz. 10/4 of the SS-Division Totenkopf

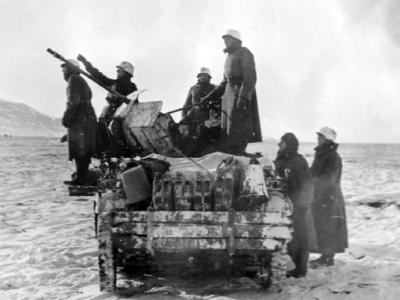

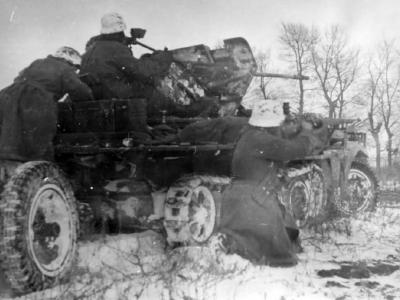

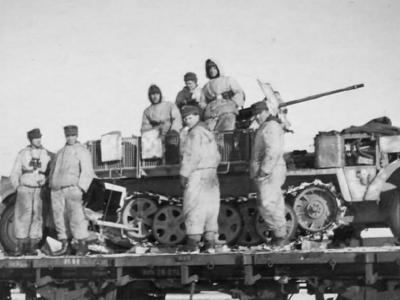

Sd.Kfz. 10/4 winter camo

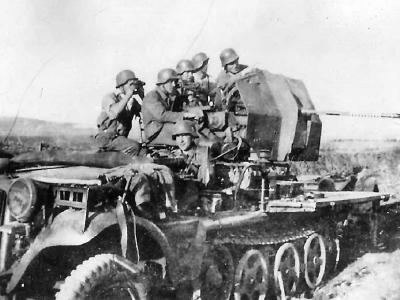

Sd.Kfz. 10/5 and crew

Sd.Kfz.10 4 leichter Zugkraftwagen 1t halftrack

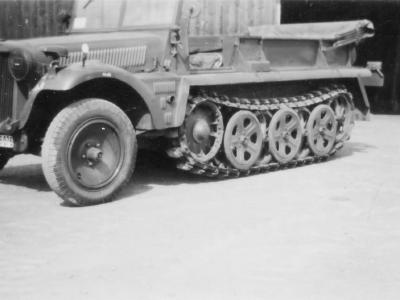

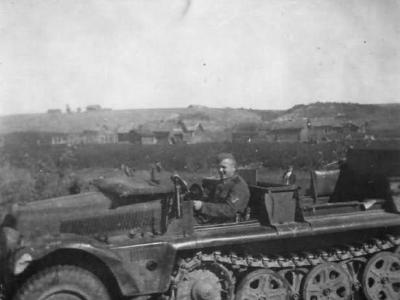

Sd.Kfz.10 Demag D7

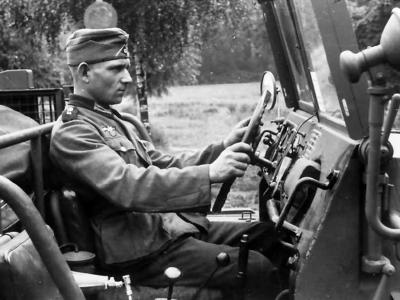

Sd.Kfz.10 driver

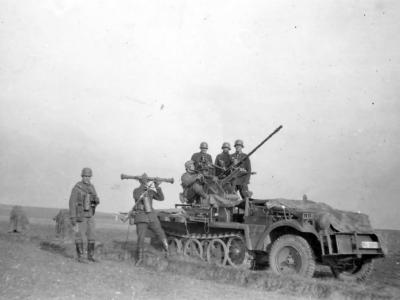

Sd.Kfz.10 in combat

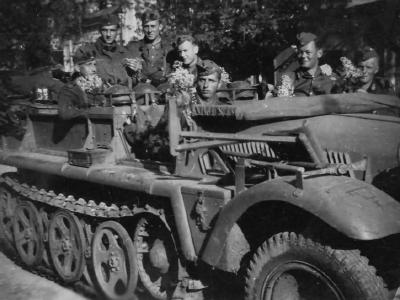

Sd.Kfz.10 leichter Zugkraftwagen 1t halftrack

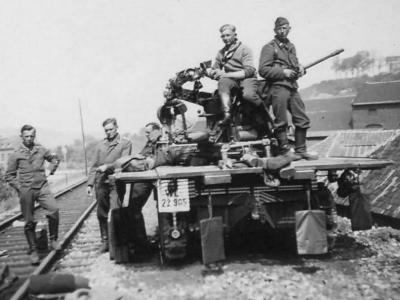

Sd.Kfz.10/4 of the Luftwaffe unit – June 1940 Huy Belgium

Sd.Kfz.10/4 June 1940 Huy Belgium

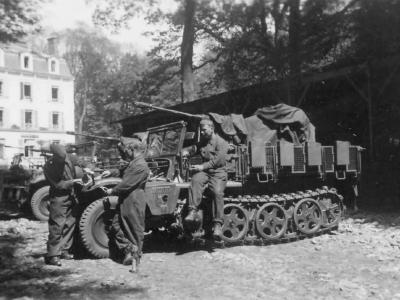

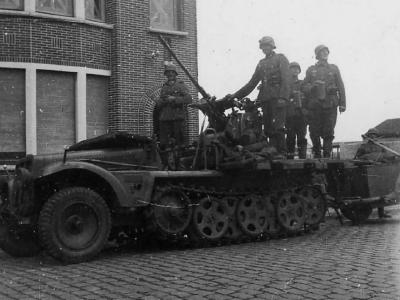

Sd.Kfz.10/4 leichter Zugkraftwagen 1t halftrack

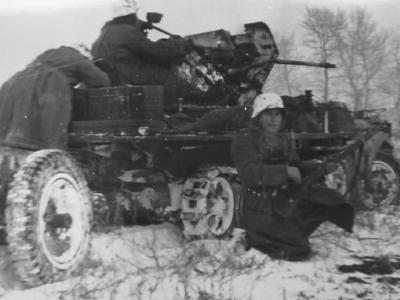

Sd.Kfz.10/4 winter

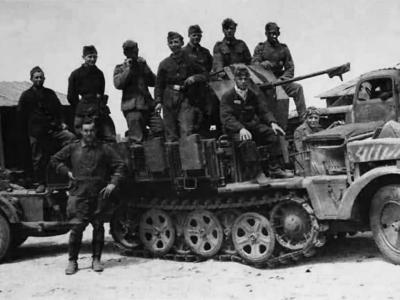

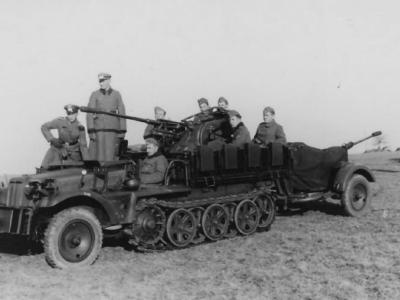

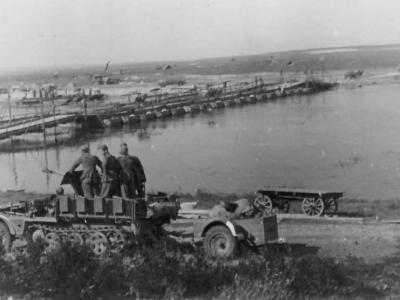

Sd.Kfz.10/4 with trailer

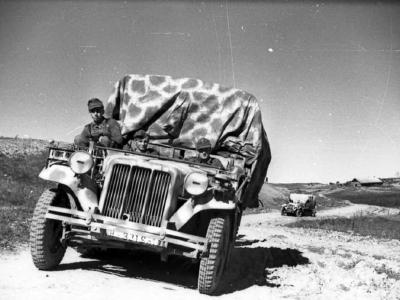

SdKfz 10 1944 Eastern Front

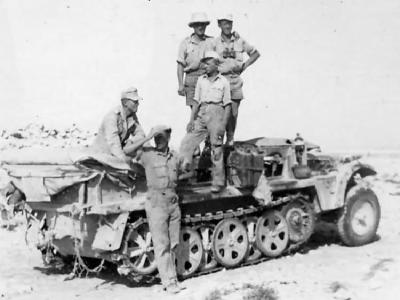

SdKfz 10 afrika korps

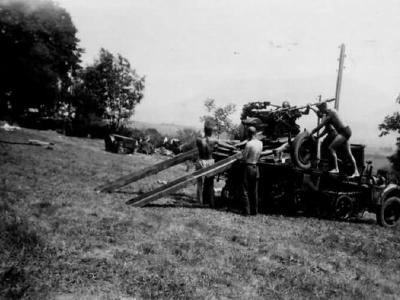

SdKfz 10 and pak

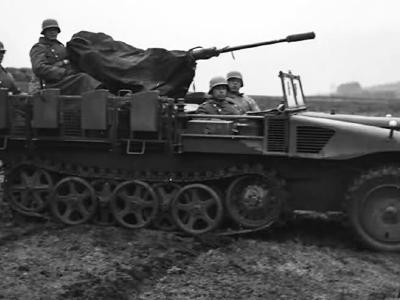

SdKfz 10 Demag D ll 3

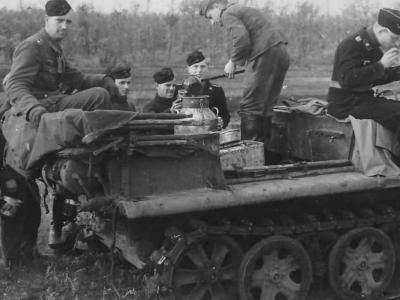

SdKfz 10 Demag D7 halftrack

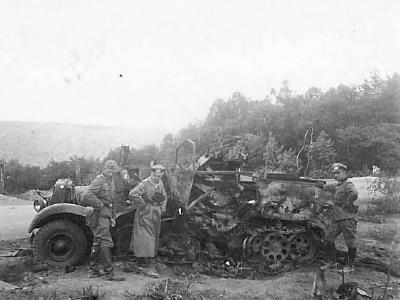

SdKfz 10 destroyed

SdKfz 10 haltrack

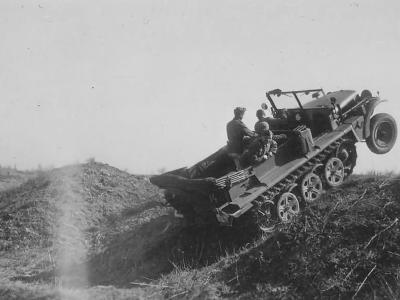

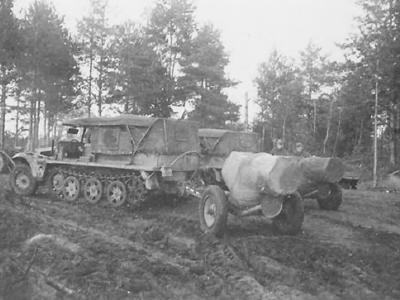

SdKfz 10 haltrack 2

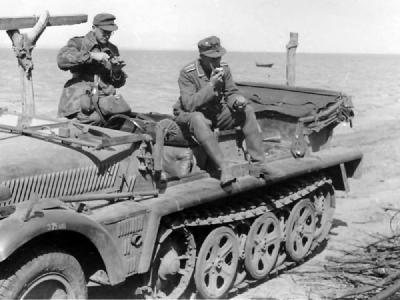

SdKfz 10 haltrack 3

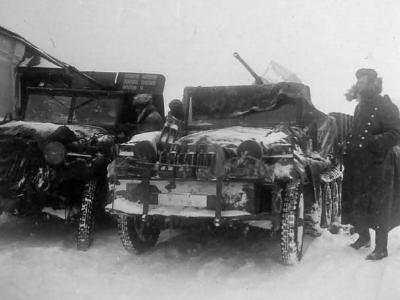

SdKfz 10 in winter

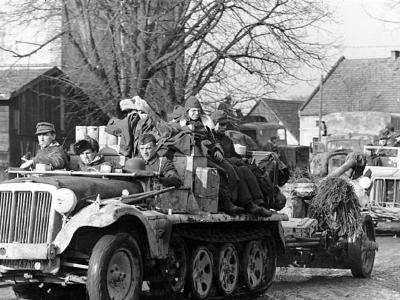

SdKfz 10 near Breslau February 1945

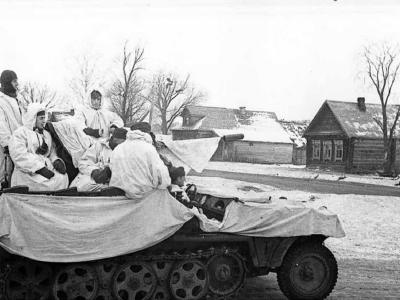

SdKfz 10 October 1941 - Eastern Front

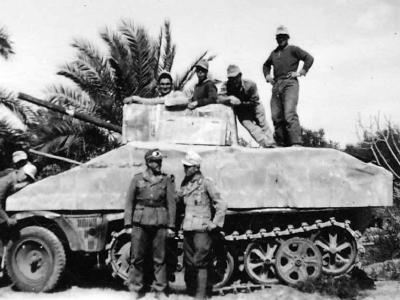

SdKfz 10 Panzerattrappe of the Afrikakorps DAK

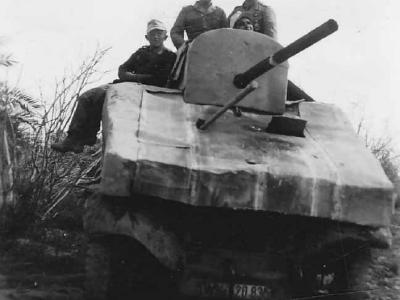

SdKfz 10 Panzerattrappe of the Afrikakorps DAK 2

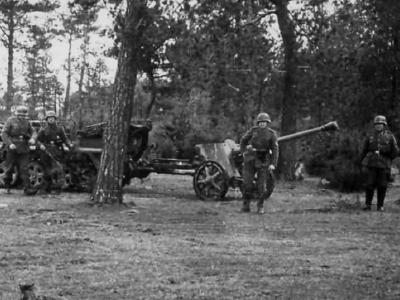

SdKfz 10 towing 5 cm pak 38

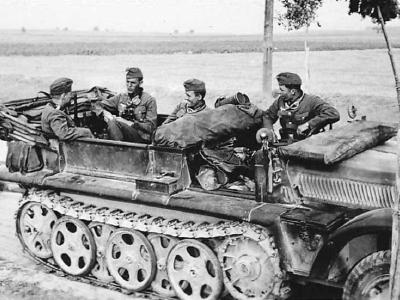

SdKfz 10 towing gun

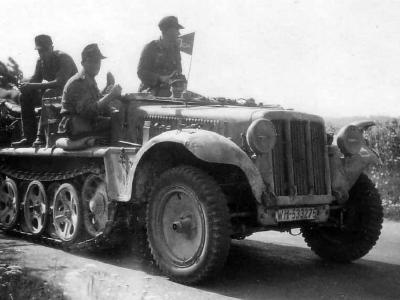

SdKfz 10 WH 533275

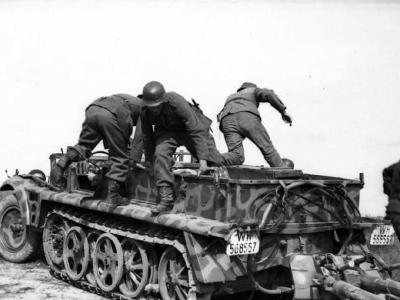

SdKfz 10 WH-568557 with Pak 1944 - Eastern Front

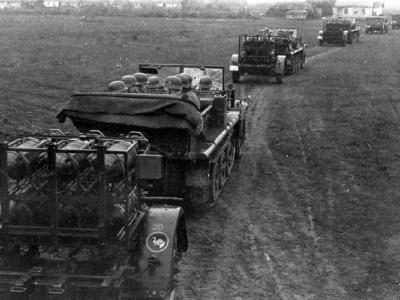

SdKfz 10 with 28/32 cm Nebelwerfer 41 1942-1943

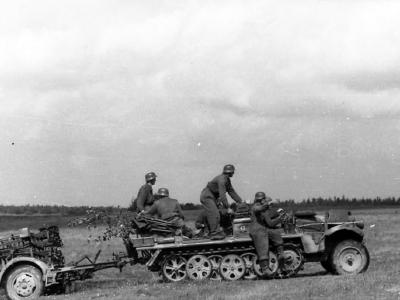

SdKfz 10 with 28/32 cm Nebelwerfer 41 1942-1943 2

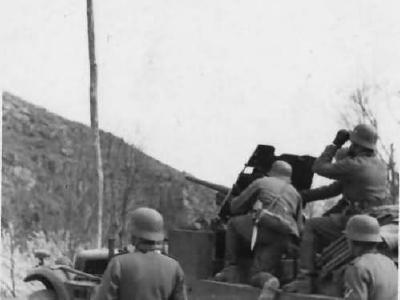

SdKfz 10 with 3,7 cm Pak

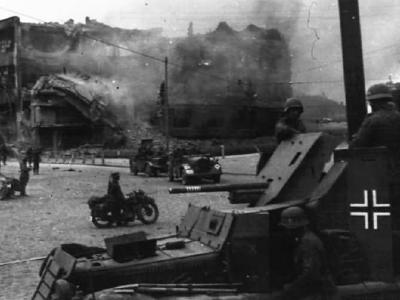

SdKfz 10 with 37mm pak and armoured cab

SdKfz 10 with 5 cm Pak 38

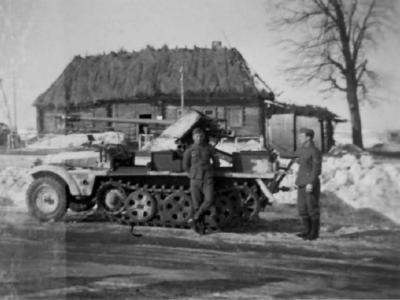

SdKfz 10 with 50mm Pak 38

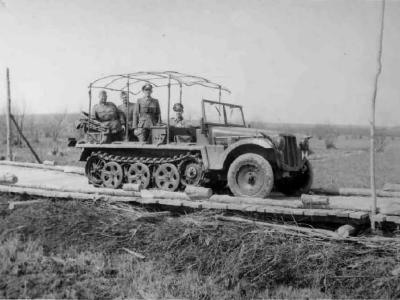

SdKfz 10 with antenna

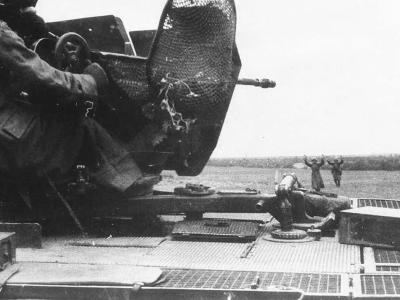

Sdkfz 10 with Flak and Russian POW

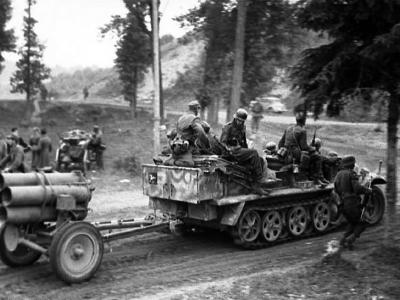

SdKfz 10 with Nebelwerfer 1944

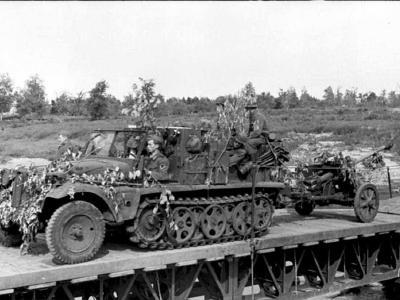

SdKfz 10 with Pak 38 (5 cm Panzerabwehrkanone 38 L/60) 1942

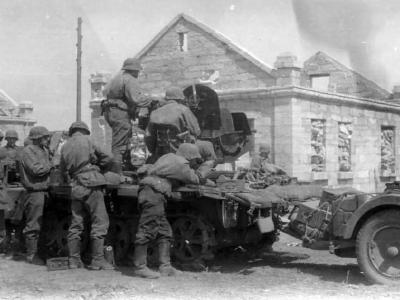

SdKfz 10/4 20mm Flak in action

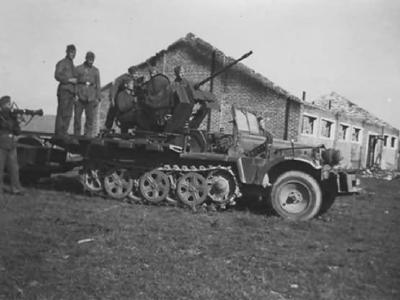

SdKfz 10/4 2cm flak 30

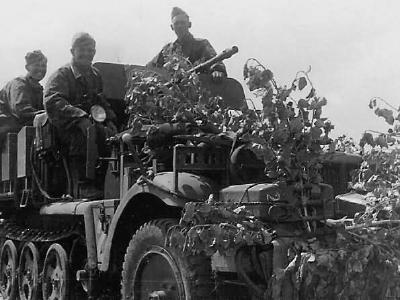

SdKfz 10/4 2cm Flak Halftrack

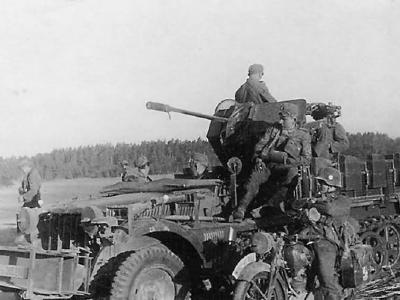

SdKfz 10/4 2cm Flak Halftrack Russia

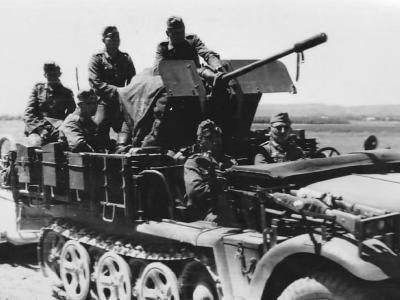

SdKfz 10/4 AA halftrack

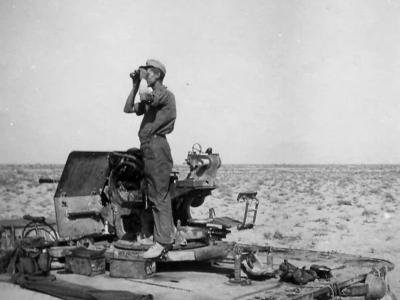

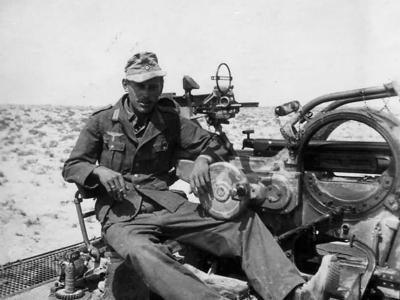

SdKfz 10/4 Afrika Korps DAK

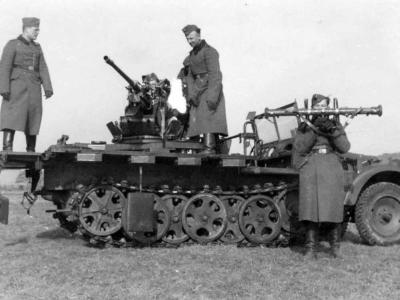

SdKfz 10/4 crew exercise

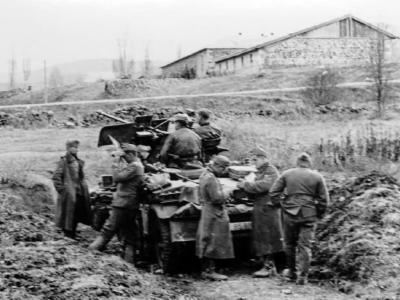

SdKfz 10/4 Demag D7

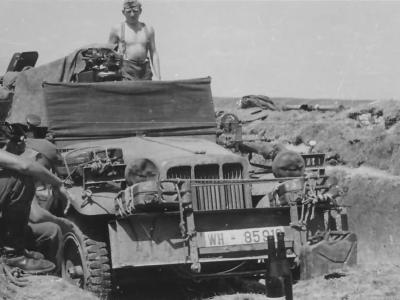

SdKfz 10/4 Demag D7 flak

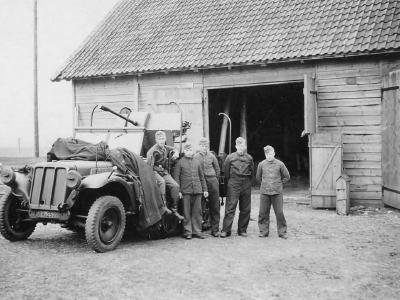

SdKfz 10/4 Demag D7 halftrack

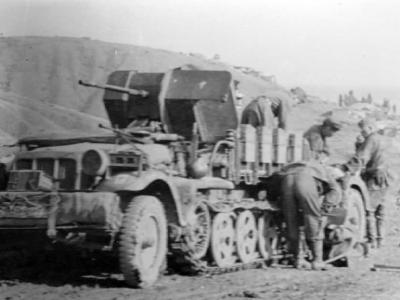

SdKfz 10/4 Demag D7 photo

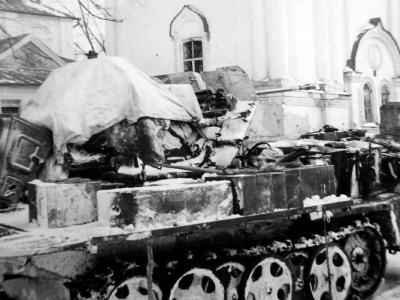

SdKfz 10/4 Demyansk Pocket 1942

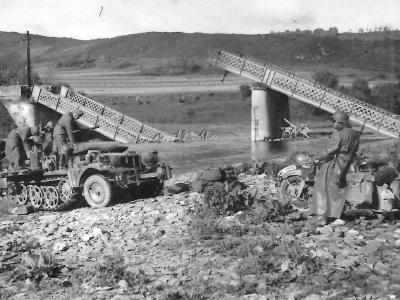

SdKfz 10/4 Donchery Maas France 1940

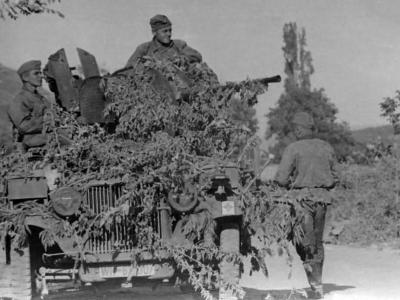

SdKfz 10/4 flak 20mm

SdKfz 10/4 flak version

SdKfz 10/4 gunner of the Afrika Korps (DAK)

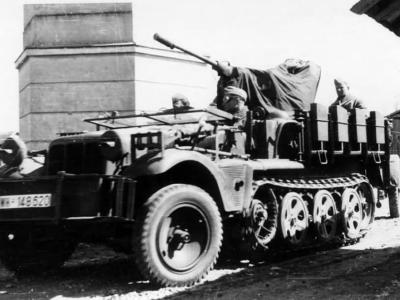

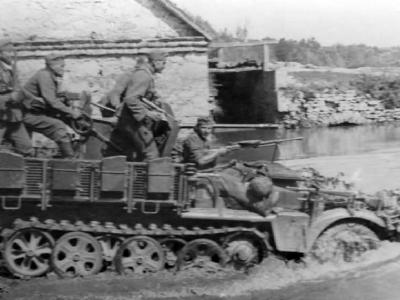

SdKfz 10/4 haltrack in Russia

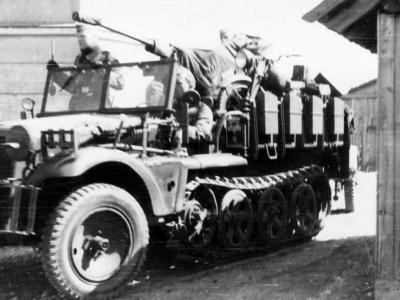

SdKfz 10/4 haltrack in Russia photo

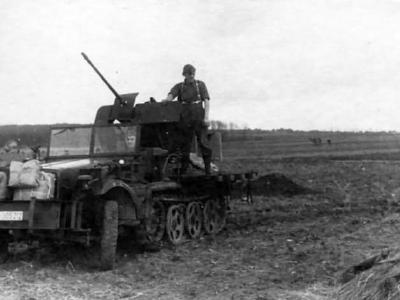

SdKfz 10/4 Wehrmacht halftrack with 20 mm flak

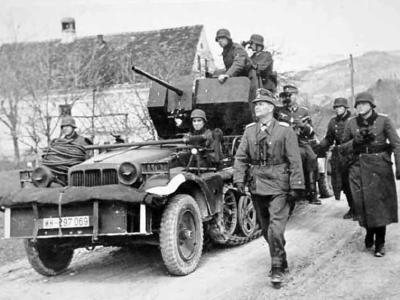

SdKfz 10/4 WH 297069

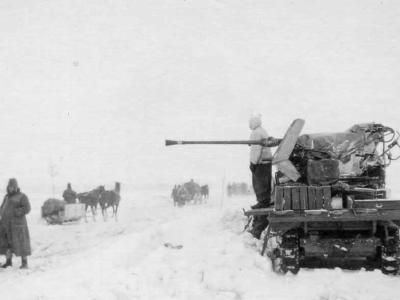

SdKfz 10/4 winter

SdKfz 10/4 winter camo

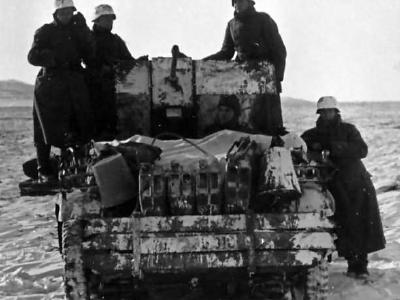

SdKfz 10/4 winter camouflage

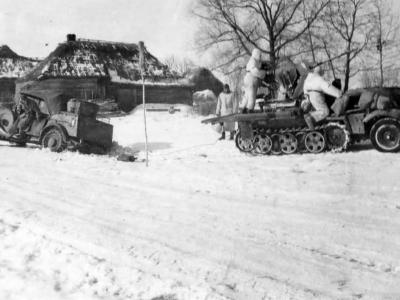

SdKfz 10/4 winter in Russia

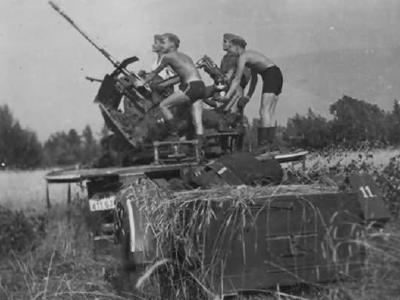

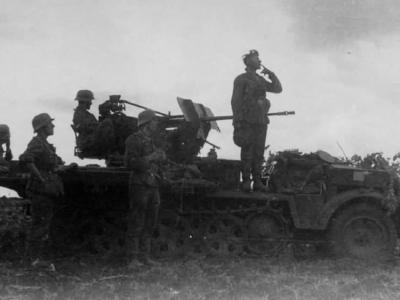

SdKfz 10/4 with 2cm flak 30

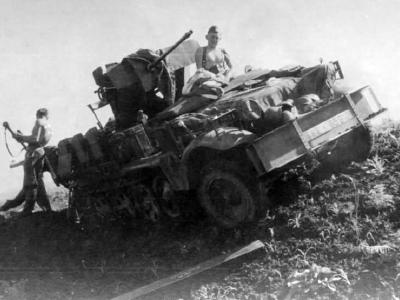

SdKfz 10/4 with flak 30

SdKfz 10/4 with flak 30 ad trailer

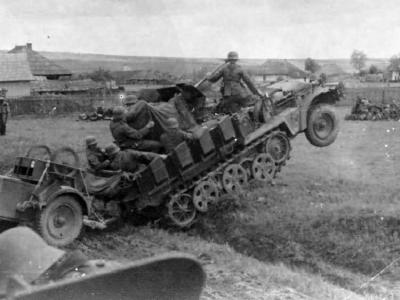

SdKfz 10/4 with Sd Ah 51

SdKfz 10/4 with Sd Ah 51 2

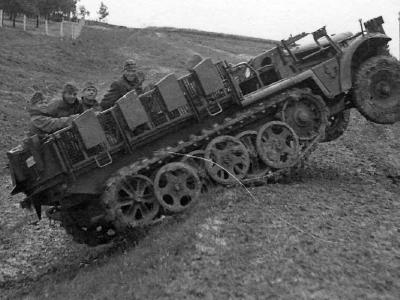

SdKfz 10/4 without Flak gun

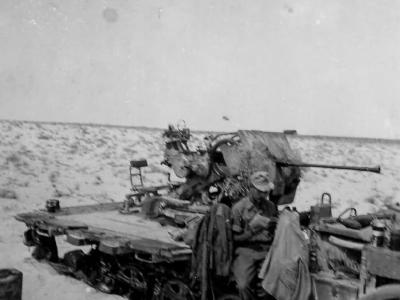

SdKfz 10/5 Afrika Korps DAK photo

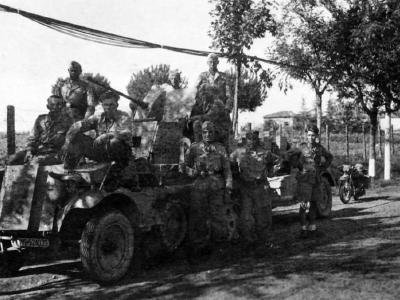

SdKfz 10/5 armoured cab

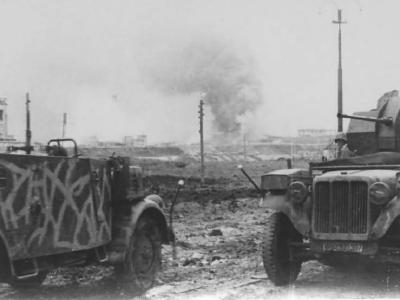

SdKfz 10/5 flak 20mm

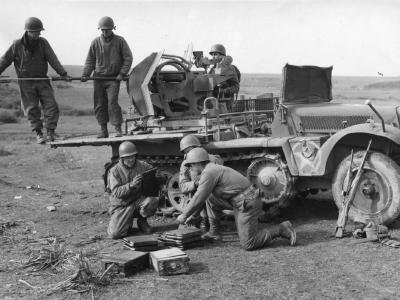

SdKfz 10/5 flak and US soldiers

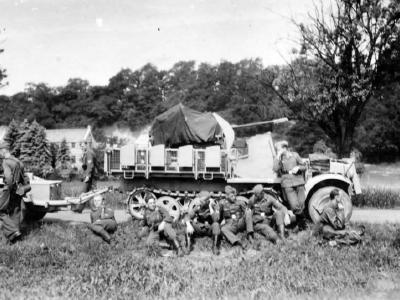

SdKfz 10/5 with armored cab

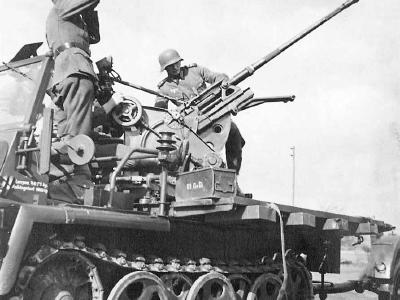

Self-propelled anti-aircraft gun Demag SdKfz 10/4

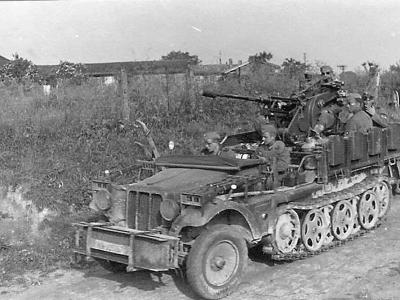

Self-propelled anti-aircraft gun SdKfz 10/4

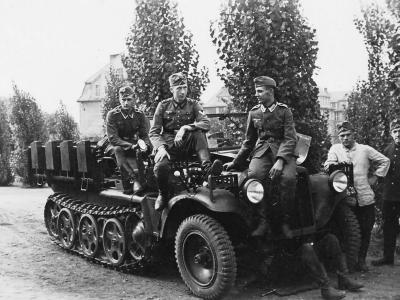

wehrmacht soldiers next to a SdKfz 10 halftrack

Zugkraftwagen 1to SdKfz 10 Yugoslavia 1941

Sd.Kfz. 10 (leichter Zugkraftwagen 1 t, Demag typ D7) was a German halftrack that saw very widespread use in World War II. The first prototype of SdKfz 10, was completed during 1934 and in 1937 the production model (the D 7) emerged. Its main role was as a prime mover for small towed guns such as the 2 cm FlaK 30, the 7.5 cm leIG, or the 3.7 cm PaK 36 anti-tank gun. It could carry eight troops in addition to towing a gun or trailer. Production: ~ 14000 halftracks.

Specifications:

variant	Sd.Kfz. 10 A and B	Sd.Kfz 10/4 (AA variant)
crew	two drivers + 6 soldiers	driver + 4 or 6 soldiers
weight empty	3400 kg
weight	4900 kg	4900 kg (5500 kg with armor)
trailer weight	1000 kg	1000 kg
maximum load	1500 kg
lenght	4750 mm	4793 mm
width	1930 mm	2156 mm
wheelbase	2430 mm	2430 mm
front tyres	6,00-20	6,00-20
front axle width	1630 mm	1630 mm
height	1620 / 2000 (with hood) mm	2000 mm
max speed	65 km/h (average on road 45 km/h)	65 km/h
range	300 km (150 km off-road)	220 km (150 km off-road)
fording	700 mm	700 mm
climbing ability	30° (empty), 24° (with load), 12-15° with trailer	30° (empty), 24° (with load), 12-15° with trailer
vertical obstacle		450 mm
trench crossing	1500 mm	1500 mm
circulation	9000 mm	9000 mm
ground clearance	325 mm	325 mm
engine	Maybach NL 38 3791 cm³ 83 hp at 3,000 rpm, 6 cylinder inline liquid cooled petrol engine producing. Later Maybach HL 42 TRKM, 4198 cm³ 100 hp at 3,000 rpm, 440kg, oil capacity: 12l; cooling system capacity: 13l.	Maybach NL 38 3791 cm³ 83 hp at 3,000 rpm, 6 cylinder inline liquid cooled petrol engine producing. Later Maybach HL 42 TRKM, 4198 cm³ 100 hp at 3,000 rpm, 440kg, oil capacity: 12l; cooling system capacity: 13l..
battery	12 V, 75 Ah, Varta Typ 6 De 6	12 V, 75 Ah, Varta Typ 6 De 6
transmission	Maybach VG 102 138 H, 7 forward, 3 reverse	Maybach VG 102 138 H, 7 forward, 3 reverse
fuel capacity	89 - 110 l	205 l
fuel consumption	34l/100 km, 67l/100 km off-road	34l/100 km, 67l/100 km off-road
radius of action	300 km, 150 km off-road	300 km, 150 km off-road
tracks	Zpw 41/240/160, Zgw. 41/240/160	Zpw 41/240/160, Zgw. 41/240/160
lenght of track	6560 mm	6560 mm
track ground contact	1360 mm	1360 mm
track axle width	1580 mm	1580 mm
track weight	250 kg	250 kg
number of links per track	41	41
manufacturer	Demag, Adlerwerke, Bussing-NAG, MWC (Mechanische Werke Cottbus GmbH), MIAG (Mühlenbau und Industrie AG), MNH (Maschinenfabrik Niedersachsen Hannover), Saurer Werke.
chassis numbers	95001 - , 201001 - , 300001 - , 402001 - , 600001 - , 701001 - ?

Variants: Sd.Kfz. 10 Sd.Kfz. 10/1 - Leichter Gasspürkraftwagen - chemical reconnaissance vehicle Sd.Kfz. 10/2 - Leichter Entgiftungskraftwagen - chemical decontamination vehicle. Production: ~60 - 70. Sd.Kfz. 10/3 - Leichter Sprühkraftwagen - chemical decontamination vehicle. Production: 67. Sd.Kfz. 10/4 - Leichte Selbstfahrlafette 2 cm Flak 30 (280 rounds) auf Fahrgestell Zugkraftwagen 1 t - AA vehicle. Sdkfz 10 were totally unarmored but eventually an armored cab was provided and an armored shield was fitted to the Flak gun. A small supply of ammo was carried in bins attached to the folding sides of the superstructure, but generally a single axle trailer was towed. Sd.Kfz. 10/5 - Leichte Selbstfahrlafette 2 cm Flak 38 auf Fahrgestell Zugkraftwagen 1 t - AA vehicle. Production: ~2440 (Sd.Kfz. 10/4 + Sd.Kfz. 10/5).

Bibliography:

Die Zugkraftwagen der deutschen Wehrmacht 1 t - 5 t (Sd. Kfz. 10, Sd. Kfz 11 und Sd. Kfz 6) - Walter E. Seifert, Waffen-Arsenal Special Band 39
German Half-Tracks of World War Two - Frank V. De Sisto, Concord Armor At War 7054
Sd Kfz 10/4 - Wydawnictwo Militaria 172 (Polish / English)
Flak Selbstfahrlafetten and Flakpanzer: Sd.Kfz.10/4 to 8.8cm Flak auf VFW - Thomas L. Jentz Panzer Tracts 12
Halbkettenfahrzeuge: German Half-track Vehicles 1939-1945 - J. Williamson, Almark Publishing, Wehrmacht illustrated No.4
German Half-Tracked Vehicles of World War 2: Unarmoured Support Vehicles of the German Army 1933-45 - John Milsom, Arms & Armour Press 1975
German Light Half Tracked Prime Movers, 1934-1945 - Reinhard Frank, Schiffer Military History
Die Halbkettenfahrzeuge des Deutschen Heeres 1909 - 1945 - Walter J. Spielberger, Motorbuch Verlag 1993
Halbketten-Fahrzeuge - Uwe Feist , Das Waffen-Arsenal Band 8 (german)
Thomas L. Jentz, Hilary Louis Doyle: Panzer Tracts No. 22-1, Leichter Zugkraftwagen 1t (Sd.Kfz.10)
