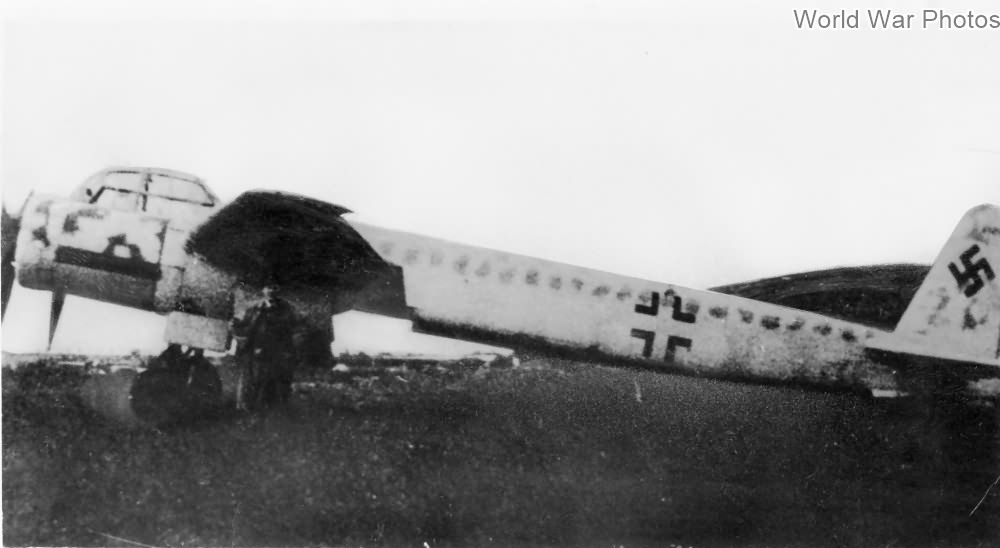

Ju 88H-2

Ju 88H-2

Long-range fighter Ju 88H-2

Ju 88H Series – Long-Range Reconnaissance and Destroyer Variants

The Ju 88H series was an extended range development of the Ju 88D, designed to support U-boat operations over the Atlantic by conducting long-range reconnaissance missions. This variant featured several modifications to increase fuel capacity, range, and functionality.

Ju 88H Prototype (V89)

  • First Flight: November 2, 1943 (W.Nr 430820, RG+RP).
  • Engines: Powered by BMW 801ML engines.
  • Structural Modifications:
    • A 99 cm extension added forward of the leading edges and a 230 cm extension aft of the trailing edge to accommodate additional fuel tanks, increasing range.
    • The wingspan was also increased to support the larger airframe and extra fuel.
  • Reconnaissance Equipment: Three Robot Rb 70/30 and Rb 50/30 cameras were mounted in the rear fuselage for high-altitude and low-altitude photography.
  • Armament: The prototype featured two MG 81Z machine guns in a ventral pod and one MG 81 each in the windshield and rear post for defense.
  • Radar: Equipped with FuG 200 Hohentweil radar for maritime reconnaissance.

Ju 88H-1

  • Reconnaissance Version:
    • Engines: Powered by BMW 801D engines producing 1700 hp.
    • Radar: Equipped with FuG 220 Lichtenstein SN-2 radar for detecting targets over long distances.
    • Range: Maximum range of 5130 km, making it ideal for long-range Atlantic reconnaissance missions.
    • Production: Only ten were built.

Ju 88H-2

  • Zerstörer (Destroyer) Version:
    • Engines: Powered by BMW 801D-2 engines.
    • Wing Span: Slightly reduced to 20.08 meters.
    • Armament:
      • Two MG 151/20 cannons in a closed nose for forward-firing offense.
      • Four additional MG 151/20 cannons in a ventral pod, making it a heavily armed version designed to engage enemy aircraft or ships.
    • Radar and Cameras: This version lacked the radar and cameras seen on the H-1, focusing instead on a combat role.
    • Production: Only five units were built.
